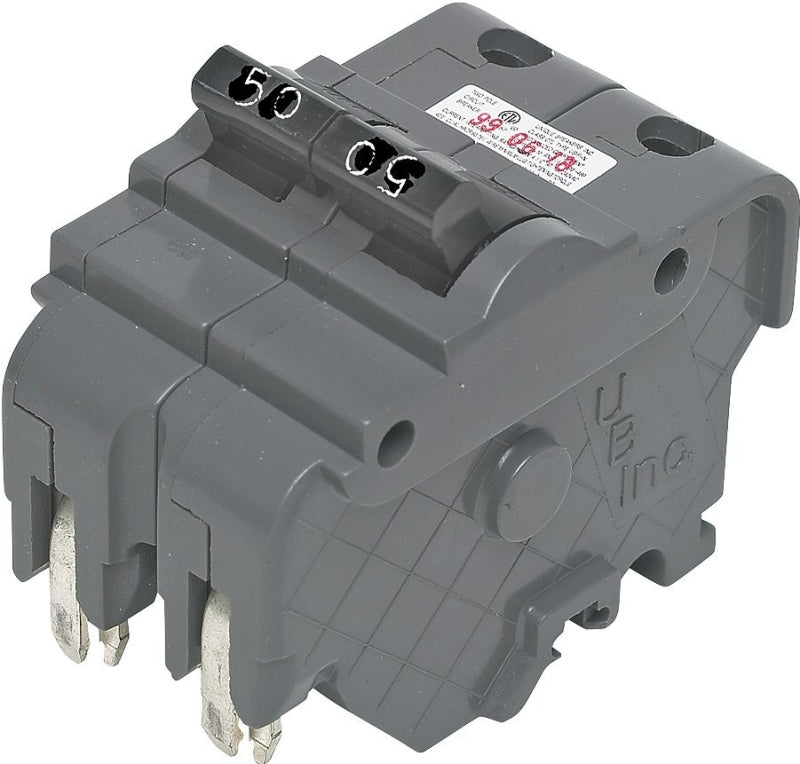

Federal Pacific UBIF250N Circuit Breaker, Type NA, 50 A, 2 -Pole, 120/240 V, Standard Trip, Plug Mounting

Replacement for Federal Pacific Load Centers. Single pole SWD rated, double pole is HACR rated. 120/240 VAC, 10,000 AIC.

Unit: CD 1

MPN: UBI-F250N

UPC: 094925006131

• Current Rating: 50 A
• Dimensions: 3.36 in L x 2 in W x 2.55 H
• Interrupt Rating: 10 kA
• Mounting Type: Plug
• Number of Phases: 1
• Number of Poles: 2
• Operating Frequency: 50/60 Hz
• Suitable for: Federal Pacific Electric load centers
• Terminal Type: Lug
• Trip Type: Standard
• Type: Type NA
• Voltage Rating: 120/240 V
• Wire Size: 14 to 6 AWG
