Connecticut Electric | Our Item #:
MORG1315159
Model Number: UBI-F020N - UPC : 094925006018

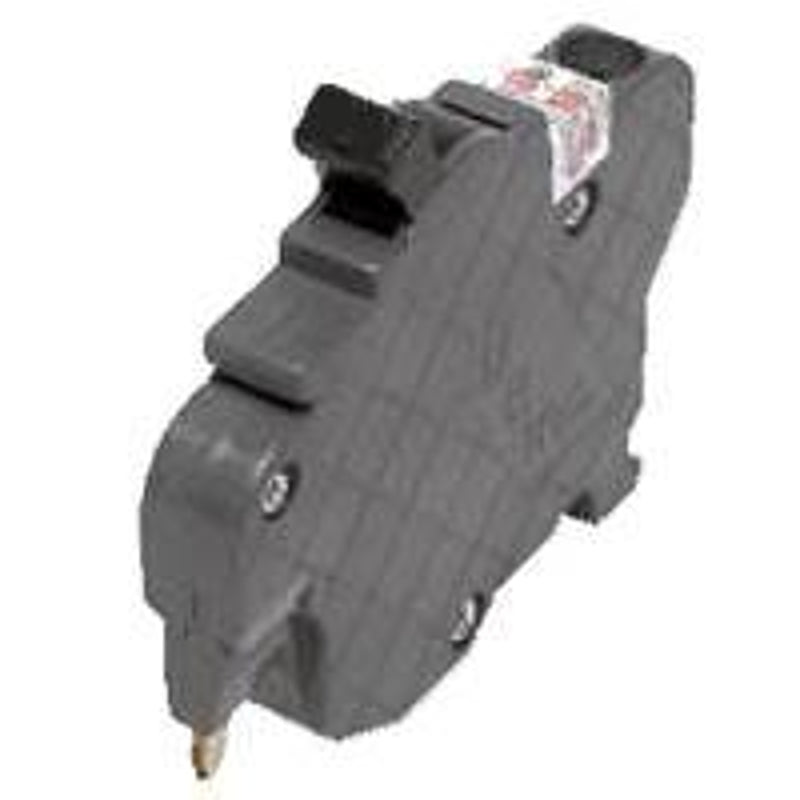

Federal Pacific UBIF020N Circuit Breaker, Type NC, 20 A, 1 -Pole, 120 V, Standard Trip, Plug Mounting
$33.85
$46.49
Unit price
/
Unavailable
Shipping calculated at checkout.
27% off
Federal Pacific UBIF020N Circuit Breaker, Type NC, 20 A, 1 -Pole, 120 V, Standard Trip, Plug Mounting is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Shipping Policy
Shipping Policy
Item ships in 1 to 2 business days. Choose your shipping option during checkout. Read our Shipping Policy and Return Policy.
Federal Pacific UBIF020N Circuit Breaker, Type NC, 20 A, 1 -Pole, 1...
$33.85
$46.49
Unit price
/
Unavailable
Features
Description
Description
For Federal Pacific Load Centers. HACR rated. 120/240 VAC, 10,000 AIC.
Unit: CD 1
Unit: CD 1
MPN: UBI-F020N
UPC: 094925006018
Additional Information
Additional Information
- Current Rating: 20 A
- Dimensions: 3.36 in L x 0.5 W x 2.55 H
- Interrupt Rating: 10 kA
- Mounting Type: Plug
- Number of Phases: 1
- Number of Poles: 1
- Operating Frequency: 50/60 Hz
- Suitable for: Federal Pacific Electric load centers
- Terminal Type: Lug
- Trip Type: Standard
- Type: Type NC
- Voltage Rating: 120 V
- Wire Size: 14 to 10 AWG
