Prime-Line H 3511 Window Operator, 9 in L x 3-7/8 in W x 13-1/4 in H Dimensions

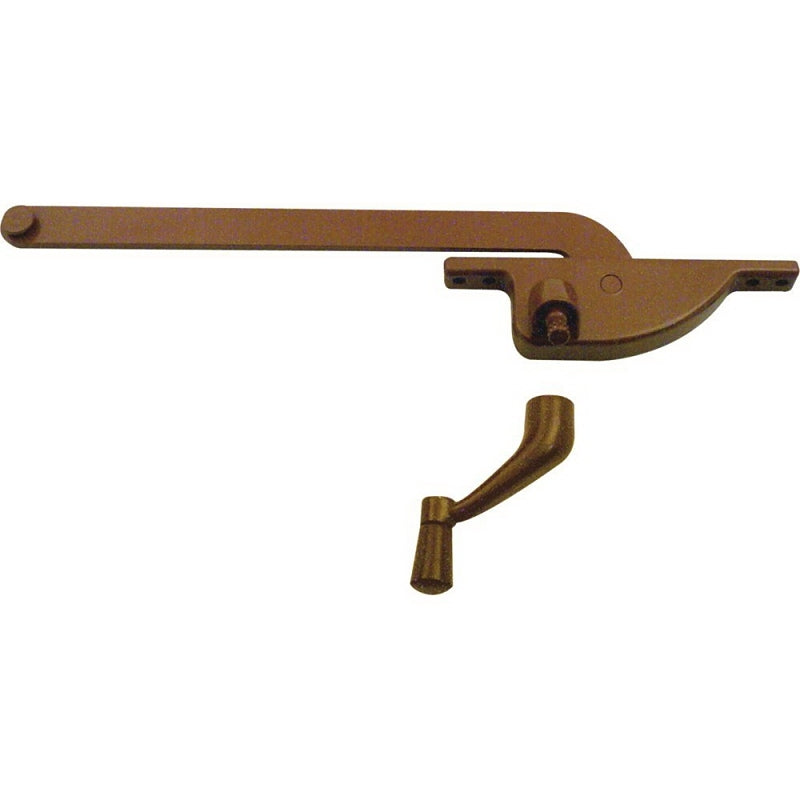

The H 3511 casement window operator is a right hand bronze teardrop body type. It has a 9 in steel arm with a round disc on the tip (some older styles had a small wheel instead of a disc). The disc slides in the H 3529 casement track located on the bottom of the casement window. It is worm gear driven by a 5/16 in crank spindle. The matching crank handle that fits onto the crank spindle and installation screws are included. Mounting holes available are 3-7/8 and 4-3/4 in apart.
Unit: EA
UPC: 049793035110
Model Number: H 3511

• Dimensions: 9 in L x 3-7/8 in W x 13-1/4 in H
• Finish: Bronze
• Handle Type: Crank
• Includes: Matching Crank Handle Mounting Screw
• Right Hand/Left Hand: Right
• Suitable for: Older Steel Framed Windows
