Prime Line Products | Our Item #:
MORG1170299
Model Number: H 3514 - UPC : 49793035141
Prime-Line H 3514 Window Operator, 9 in L x 3-7/8 in W x 13-1/4 in H Dimensions, For: Older Steel Framed Windows, Left
$16.39
$20.65
Unit price
/
Unavailable
Shipping calculated at checkout.
21% off
Prime-Line H 3514 Window Operator, 9 in L x 3-7/8 in W x 13-1/4 in H Dimensions, For: Older Steel Framed Windows, Left is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Shipping Policy
Shipping Policy
Item ships in 1 to 2 business days. Choose your shipping option during checkout. Read our Shipping Policy and Return Policy.
Prime-Line H 3514 Window Operator, 9 in L x 3-7/8 in W x 13-1/4 in ...
$16.39
$20.65
Unit price
/
Unavailable
Features
- 3-7/8 in and 4-3/4 in mounting holes
- Casement track may also need to be replaced
Description
Description

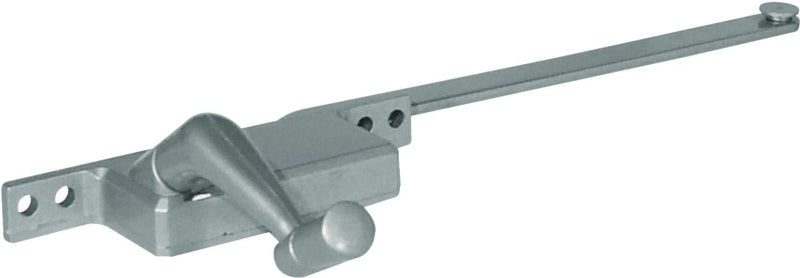

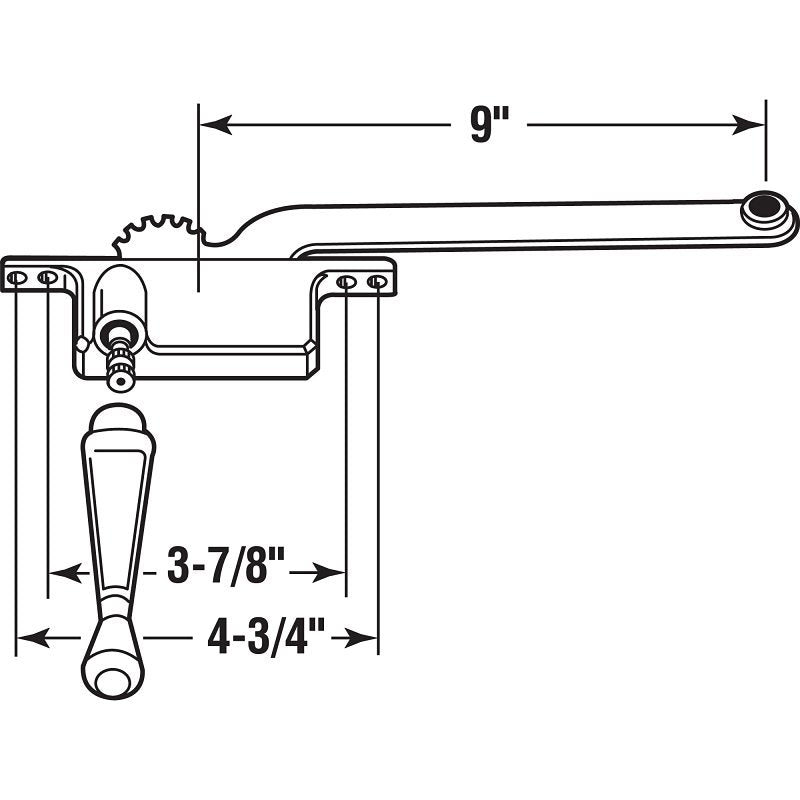

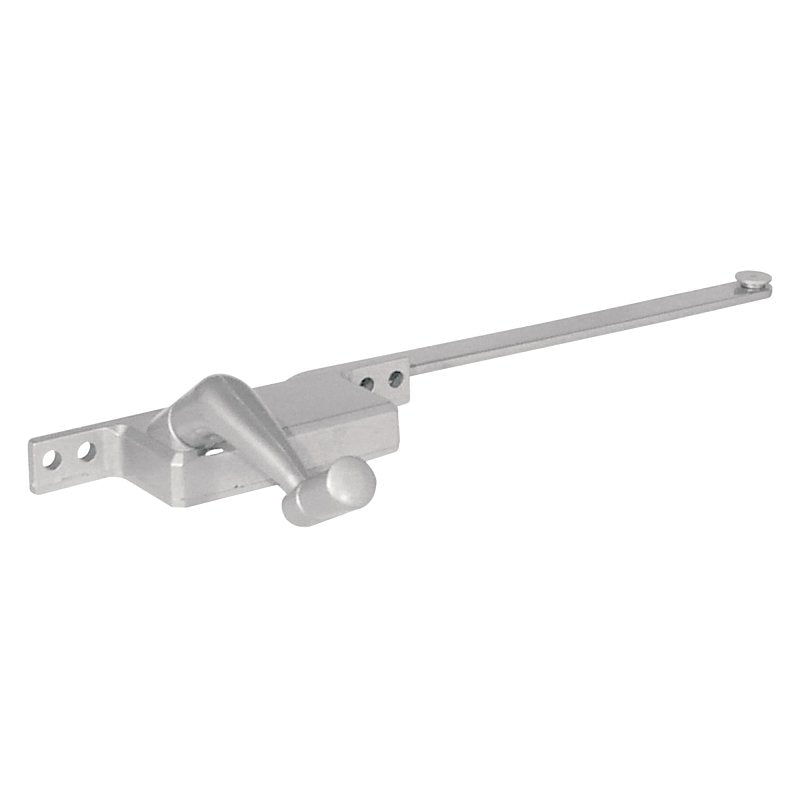

The H 3514 casement window operator is a left hand aluminum square body type. It has a 9 in steel arm with a round disc on the tip (some older styles had a small wheel instead of a disc). The disc slides in the H 3529 casement track located on the bottom of the casement window. It is worm gear driven by a 3/8 in crank spindle. The matching crank handle that fits onto the crank spindle and installation screws are included. Mounting holes available are 3-7/8 and 4-3/4 in apart.
Unit: CD
UPC: 49793035141
Model Number: H 3514
Unit: CD
UPC: 49793035141
Model Number: H 3514
Additional Information
Additional Information
- Finish: Aluminum
- Handle Type: Crank
- Includes: Matching Crank Handle Mounting Screw
- Right Hand/Left Hand: Left
- Suitable for: Older Steel Framed Windows
