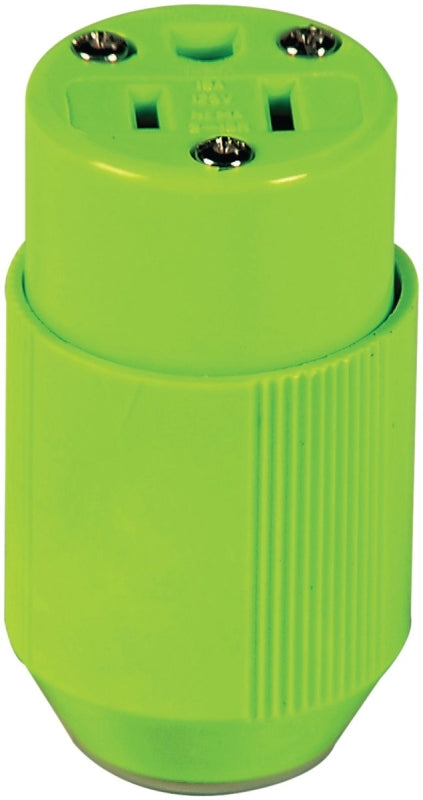

Eaton Wiring Devices BP3487-4GN Electrical Connector, 2 -Pole, 15 A, 125 V, NEMA: NEMA 5-15R, Fluorescent Green

Name: Eaton Wiring Devices BP3487-4GN Electrical Connector, 2 -Pole, 15 A, 125 V, NEMA: NEMA 5-15R, Fluorescent Green
Brand: Eaton Wiring Devices
SKU: MORG1128479
Price: 12.04 USD
Availability: InStock

$12.04 ~~$16.79~~

Shipping calculated at checkout.

Shipping Policy

Item ships in 1 to 2 business days. Choose your shipping option during checkout. Read our Shipping Policy and Return Policy.

Features

Solid brass plug blades are firmly embedded in body
Terminal screw clamps are designed to contain wire and prevent binding
Terminal screws backed out ready for wiring
High visibility products for quick location and identification of plugs in the middle of a job site
High visibility product contains neoprene dust cover which prevents dust from entering the plug or connector at the cable entrance
Combination Slotted/Phillips head mounting and terminal screws ease installation with power screwdrivers

Description

Highly visible and easy to locate at the job sight. Molded out of impact-and chemical-resistant nylon. Neoprene gasket seals cord opening to protect against moisture, dirt, wood chips and more. Temperature rating of -40 to 75 deg C. 15 A. UL 498 listed (file #E15012), CSA Certified C22.2 #42 (file #2081) (6221-02) NOM Certified. NEMA 5-15. Carded.

Unit: EA

MPN: BP3487-4GN

UPC: 032664577512

Additional Information

Cable/Wire Size: 1/4 to 21/32 in
Color: Fluorescent Green
Current Rating: 15 A
Dimensions: 1.83 in L x 1.38 in W
Grounding Type: Grounded
Material: Nylon
NEMA Configuration: NEMA 5-15R
Number of Poles: 2
Number Of Wires: 3
Operating Temperature: -40 to 75 deg C
Type: High-Visibility Straight
Voltage Rating: 125 V
