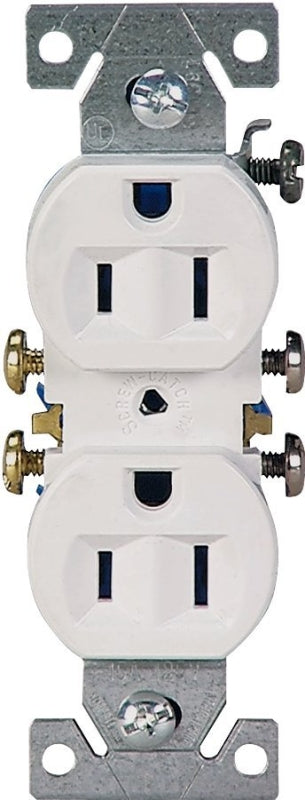

Eaton Wiring Devices 270W/10 Duplex Receptacle, PVC, White, 2-Pole, 15 A, 125 V, 3-Wire, NEMA: 5-15R

Standard duplex receptacles feature longer, wider straps providing 40% more contact area to the wallboard. Virtually eliminates floating installations. Patented built-in wire stripper for #14 and #12 wire to speed installation. Patented built-in wire looper for pre-looping. Tri-combo screws accept slotted, Phillips and Robertson-head tools for installation flexibility. Terminal screws backed out - ready for wiring. Side wire terminals accept up to #10 solid or stranded wire. Push-in terminals accept #14 solid wire.
Unit: PK 10
UPC: 32664554803
Model Number: 270W10

• Color: White
• Current Rating: 15 A
• Dimensions: 4.19 in L x 1.30 in W x 0.69 in D
• Frequency Rating: 60 Hz
• Material: PVC
• Mounting Type: Wall
• NEMA Configuration: 5-15R
• Number of Poles: 2
• Number Of Wires: 3
• Operating Temperature: -20 to 60 deg C
• Voltage Rating: 125 V
• Wire Size: 14 to 10 AWG
• Wiring Type: Push-in Side
