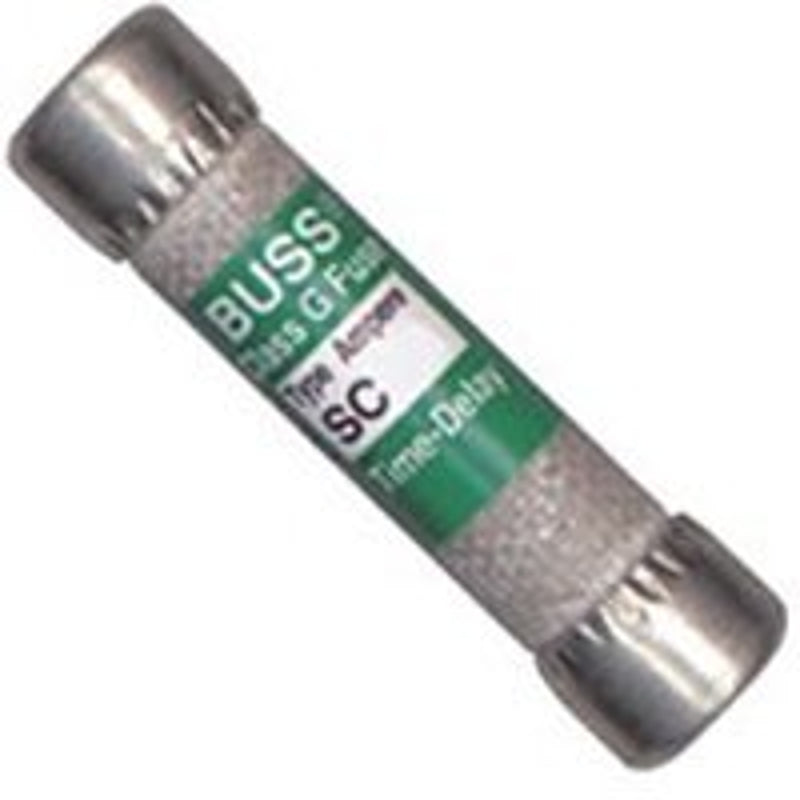

Bussmann SC-25 Fuse, 25 A, 480 VAC, 300 VDC, 100 kA Interrupt, Melamine Body, AJ, Low Voltage, Time Delay Fuse

They have a minimum 300 V rating and are available up to 60 A. All SC fuses are 13/32in Dia with varying lengths to provide a rejection feature that helps prevent over fusing (installing a 30 A fuse in a 20 A circuit). One half to 6 A SC fuses are fast-acting, while 7 to 60 A SC fuses are time-delay to permit temporary overloads to pass without nuisance openings.

Unit: EA

• Body Material: Melamine
• Current Rating: 25 A
• Diameter: 13/32 in
• Element Type: Dual
• Fuse Group: AJ
• Fuse Type: Low Voltage Time Delay
• Indicator Type: Non-Indicating
• Interrupt Rating: 100 kA
• Length: 1-5/8 in
• Rejection/Non-Rejection: Rejection
• Terminal Type: Holder
• Voltage Rating: 480 VAC 300 VDC

Application: For use in mobile home and industrial, residential
