Eaton Wiring Devices | SKU:
VORG0922898
Model Number: CS115B - UPC : 032664487309

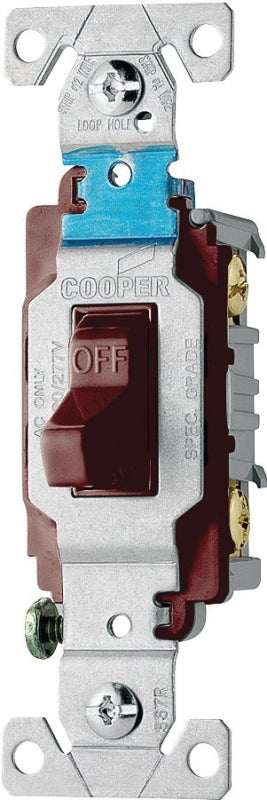

Eaton Wiring Devices CS115B Toggle Switch, 15 A, 120/277 V, Screw Terminal, Nylon Housing Material, Brown
$3.56
$4.55
Unit price
/
Unavailable
Shipping calculated at checkout.
22% off
Eaton Wiring Devices CS115B Toggle Switch, 15 A, 120/277 V, Screw Terminal, Nylon Housing Material, Brown is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Shipping Policy
Shipping Policy
Item ships in 1 to 2 business days. Choose your shipping option during checkout. Read our Shipping Policy and Return Policy.
Eaton Wiring Devices CS115B Toggle Switch, 15 A, 120/277 V, Screw T...
$3.56
$4.55
Unit price
/
Unavailable
Features
- Patent pending spring cup toggle design for robust actuation
- Terminals accept up to #10 AWG solid or stranded
- Terminal screws backed out-ready for wiring
- Tri-combo head mounting and terminal screws ease installation
Description
Description
Side wire terminals accept up to number 10 solid or stranded wire. Rated for fluorescent lighting fixtures typical in commercial applications. 0.050 in thick steel mounting strap zinc-plated for corrosion resistance. Ground screw terminal standard. Meets all UL 20 requirements, Federal specifications WS896.
Unit: EA
Unit: EA
Additional Information
Additional Information
- Actuator Type: Cam
- Color: Brown
- Contact Material: Silver
- Current Rating: 15 A
- Dielectric Strength: 1500 V
- Housing Material: Nylon
- Mounting Type: Wall
- Number of Poles: 1
- Temperature Rating: -20 to 60 deg C
- Terminal Type: Screw
- Voltage Rating: 120/277 V
- Wattage Rating: 0.5 to 2 hp
Application: For fluorescent lighting fixtures typical in commercial applications
