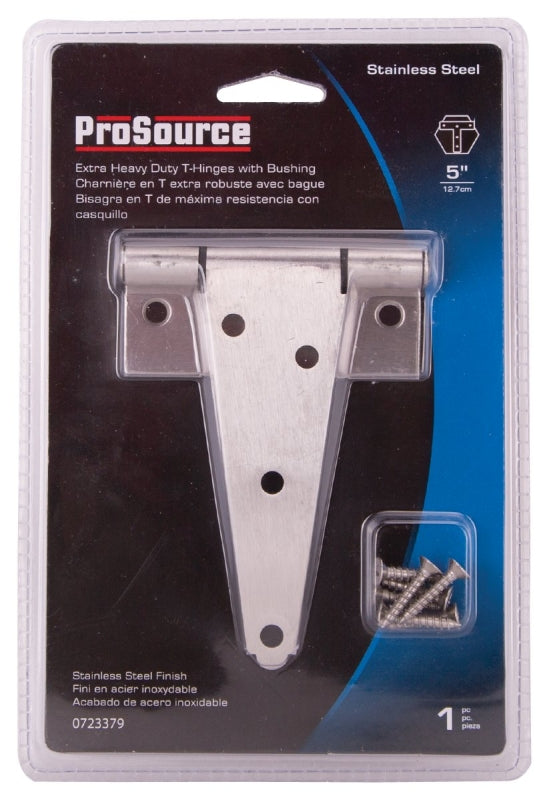

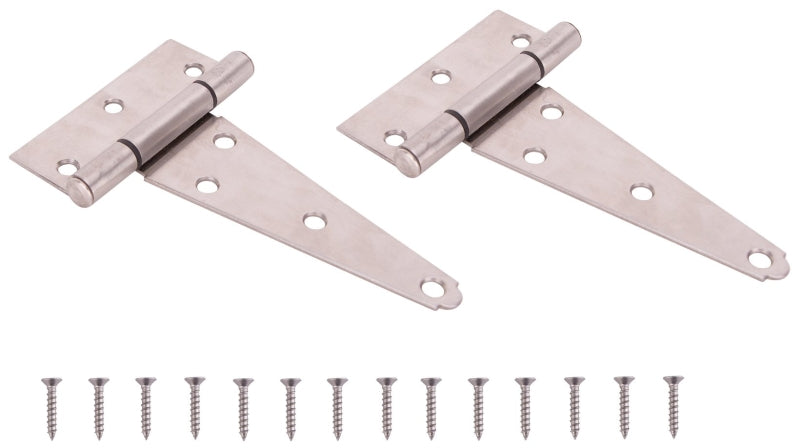

ProSource HTH-S05-C1PS T-Hinge, Stainless Steel, Brushed Stainless Steel, Fixed Pin, 180 deg Range of Motion, 70 (Pc) lb

This Extra Heavy-Duty Hinge is designed for applications with narrow frame or post, such as tool chests, barn doors, shed doors, and gates. Can be used for left or right hand installations.
Unit: EA
UPC: 045734643871
Model Number: HTH-S05-C1PS

• Dimensions: 5 in
• Door Leaf Thickness: 2 mm
• Door Leaf Width: 3-9/16 in
• Finish: Brushed Stainless Steel
• Holes per Leaf: 7
• Includes: Screw
• Knuckle Diameter: 1/2 in
• Knuckle Length: 3.68 in
• Material: Stainless Steel
• Mounting Type: Screw
• Number of Mounting Holes: 14
• Pin Material: Stainless Steel
• Pin Type: Fixed
• Projection Size: 5 in
• Range of Motion: 180 deg
• Suitable for: Door
• Weight Capacity: 70 (Pc) lb

Application: For doors, cabinets, gates and sheds
