Air King | SKU:
VORG0705855
Model Number: AK110LS - UPC : 083162211217

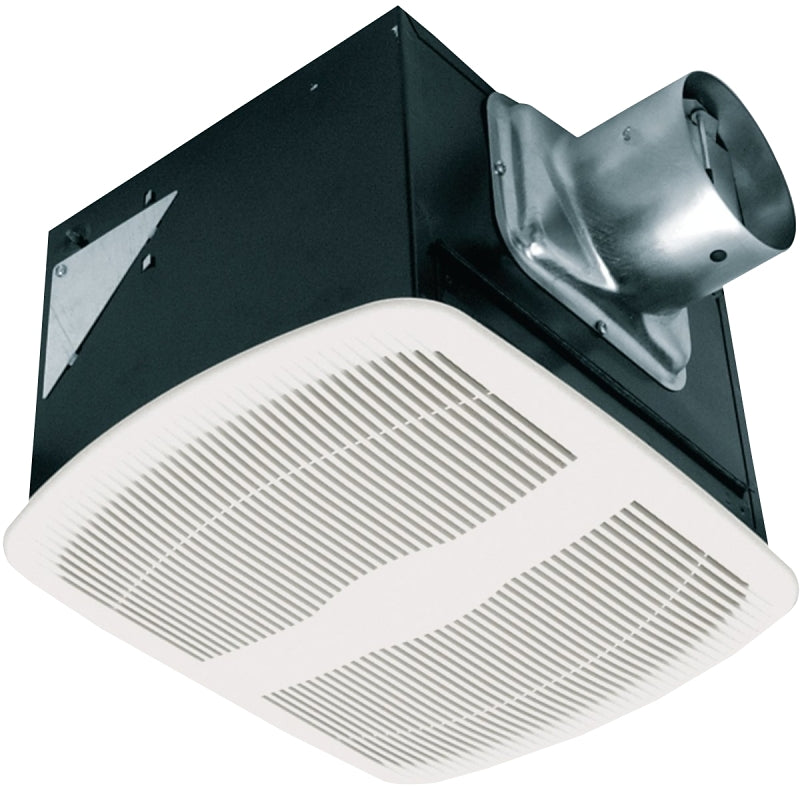

Air King AKLS Series AK110LS Exhaust Fan, 9-3/8 in L, 10-7/8 in W, 0.3 A, 115/120 V, 100 cfm Air, Metal
$148.86
$171.25
Unit price
/
Unavailable
Shipping calculated at checkout.
13% off
Air King AKLS Series AK110LS Exhaust Fan, 9-3/8 in L, 10-7/8 in W, 0.3 A, 115/120 V, 100 cfm Air, Metal is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Shipping Policy
Shipping Policy
Item ships in 1 to 2 business days. Choose your shipping option during checkout. Read our Shipping Policy and Return Policy.
Air King AKLS Series AK110LS Exhaust Fan, 9-3/8 in L, 10-7/8 in W, ...
$148.86
$171.25
Unit price
/
Unavailable
Features
- White, polymeric grill secured in place with torsion springs, easily removed if necessary
- Blower wheel, balanced polymeric dual inlet blower wheel 5-13/32 in Dia x 4 in D, 30 paddles, secured in place using 8M hex nut
- Motor enclosed 4-pole electronically balanced permanently split capacitor motor (PSC), life time lubrication, suitable for continuous operation
- Duct collar plastic collar for 4 in duct connection, comes complete with built in non-metallic back draft damper for quiet operation
- Ventilating are for bathrooms up to 110 sq-ft and for other rooms up to 135 sq-ft
- Electrical connections 1/2 in electrical knockouts provided
- Easy wiring access via either internal or external wiring compartment cover
- 4 in round duct connector with damper protects against backdrafts and ensures quiet operation
- Side access panel allows you to wire the fan from inside or outside the housing
Description
Description
At the highest point the grill projects only 1/2 in down from the ceiling. The electronically balanced centrifugal blower wheel assures maximum ventilation with minimum sound. Install using the adjustable hanging brackets for 16 in centers. 4 in metal duct collar with back draft. Motors are suitable for continuous operation. UL listed over a tub or shower on a GFCI circuit. HVI2100 certified. Housing dimensions of 10-7/8 in W x 9-3/8 in D x 7-7/8 in H.
Unit: EA
Unit: EA
Additional Information
Additional Information
- Air Flow Rate: 100 cfm
- Current Rating: 0.3 A
- Frequency Rating: 60 Hz
- Height: 9.0 in
- Includes: Blower Damper and Duct Collar Grill Hanger Bars for Mounting
- Length: 9-3/8 in
- Material: Metal
- Mounting Type: Hanger Bar
- Voltage Rating: 115/120 V
- Wattage Rating: 28.5 W
- Width: 10-7/8 in
Warranty: Limited
