Eaton Wiring Devices | Our Item #:
MORG0678896
Model Number: AH8300V - UPC : 32664705113

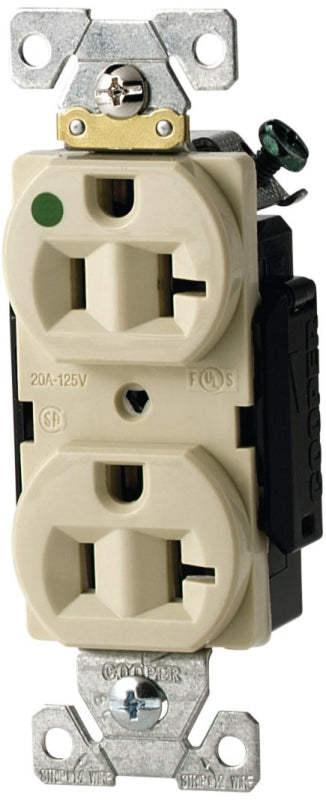

Eaton Wiring Devices AH8300V Duplex Receptacle, Brass, Ivory, 2-Pole, 20 A, 125 V, Back, Side Wiring, NEMA: 5-20R
$10.69
$15.19
Unit price
/
Unavailable
Shipping calculated at checkout.
30% off
Eaton Wiring Devices AH8300V Duplex Receptacle, Brass, Ivory, 2-Pole, 20 A, 125 V, Back, Side Wiring, NEMA: 5-20R is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Shipping Policy
Shipping Policy
Item ships in 1 to 2 business days. Choose your shipping option during checkout. Read our Shipping Policy and Return Policy.
Eaton Wiring Devices AH8300V Duplex Receptacle, Brass, Ivory, 2-Pol...
$10.69
$15.19
Unit price
/
Unavailable
Features
- Exclusive screw terminal guards provide fast, easy insulation from conductive surfaces
- Exclusive 5-leaf solid brass line contacts ensure smooth plug blade insertion and long-term retention
- Rigid, glass reinforced nylon base lends ultimate strength and great high heat resistance in contact carrier
- Solid brass mounting strap with non-riveted, integral one-piece grounding system for highest durability
- High impact-and chemical-resistant nylon face
- Tapered back wiring lead in slots assist in gathering stranded wires for faster, more secure connections
- All terminal and mounting screws are plated, triple combination (Slot/Phillips/Robertson) head for great corrosion resistance and maximum flexibility
- Long, broad mounting strap helps reach large panel cutouts for code compliance
- Automatic grounding system eliminates need for bonding jumper in grounded metal enclosure, provides redundant measure of ground continuity where jumper is used
Description
Description
Hospital specification-grade straight blade receptacles - premium back wire & side wire. Arrow Hart's feature rich line of hospital-grade receptacles have been designed to meet and exceed the demanding requirements of UL 498 and Federal Specification WC-596 to provide a consistent means of connectivity where downtime can be critical.
Unit: EA
UPC: 32664705113
Model Number: AH8300V
Unit: EA
UPC: 32664705113
Model Number: AH8300V
Additional Information
Additional Information
- Color: Ivory
- Current Rating: 20 A
- Dimensions: 4.19 in L x 1.30 in W x 0.88 in D
- Frequency Rating: 60 Hz
- Material: Brass
- Mounting Type: Wall
- NEMA Configuration: 5-20R
- Number of Poles: 2
- Number Of Wires: 3
- Operating Temperature: -20 to 70 deg C
- Voltage Rating: 125 V
- Wire Size: 14 to 10 AWG
- Wiring Type: Back Side
