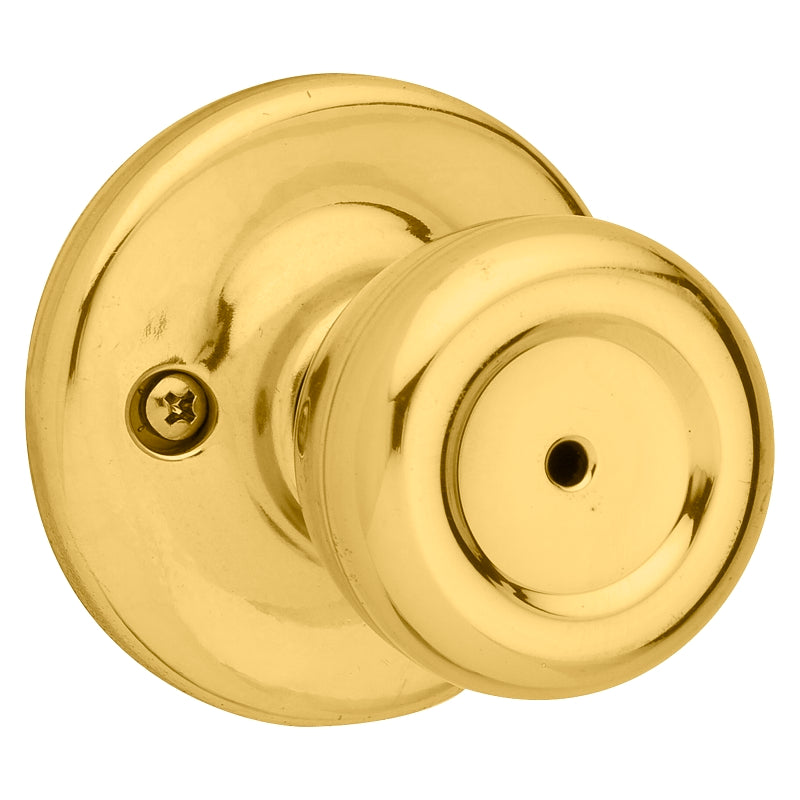

Kwikset 300M 3 CP 7/8 RFL RCS Privacy Lockset, Polished Brass, Reversible Hand, For: Bedroom and Bathroom Doors

For use on interior bedroom and bathroom mobile home doors. Both bell-shaped knobs locked or unlocked by turn button inside. Outside knob unlocked by emergency key. 7/8 in edge bore. Door prep 2-1/8 in cross bore, 1 x 2-1/4 in latch face. Backset of 2-3/8 in standard and adjustable 2-3/8 in and 2-3/4 in optional. Thk doorness 1-3/8 to 1-3/4 in. Cylinder 5-pin. Faceplate 1 x 2-1/4 in. Strike of 2-1/4 in high full lip. Bolt 3/8 in throw. Reversible for right or left hand doors. ANSI/BHMA A156.2 Grade 3.

Unit: CD

• Backset Size: 2-3/8 2-3/4 in
• Backset Type: Adjustable
• Bolt Throw Size: 1/2 in
• Cross Bore Diameter: 2-1/8 in
• Door Handing: Reversible
• Door Thickness: 1-3/4 to 1-3/8 in
• Edge Bore Diameter: 1 in
• Faceplate Size: 1 x 2-1/4 in
• Finish: Polished Brass
• Interior Locking: Yes
• Strike Size: 2-1/4 in
• Strike Type: Full Lip
• Suitable for: Bedroom and Bathroom Doors
• Throw Length: 1/2 in
