Eaton Wiring Devices  |  SKU: MORG0343517

Model Number: CSB115STV-SP - UPC : 032664709920

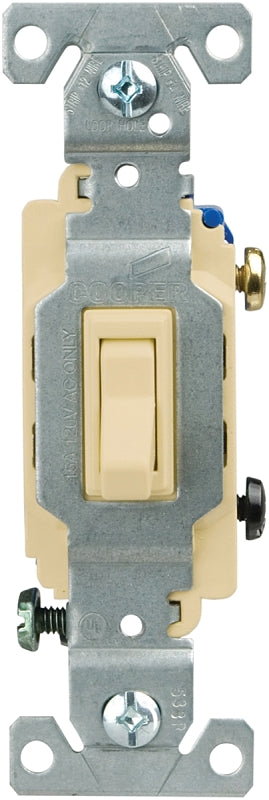

Eaton Wiring Devices CSB115STV-SP Toggle Switch, 15 A, 120/277 V, Screw Terminal, Nylon Housing Material, Ivory

$3.47 $4.65
Shipping calculated at checkout.

Shipping Policy

Item ships in 1 to 2 business days. Choose your shipping option during checkout. Read our Shipping Policy and Return Policy.

Features

  • Larger contacts and robust design for extended switch life
  • Backwire clamps on the side terminals provide for easy installation of #12 and #14 AWG wire
  • Side wire terminals accept up to #10 solid wire
  • Long, broad steel mounting strap zinc plated for corrosion resistance, virtually eliminates floating installations
  • Patented built-in wire stripper for #12 and #14 AWG wire to speed installation
  • Ground screw terminal standard
  • Stippled line and ground contacts standard
  • Tri-combo head mounting and terminal screws ease installation

Description
Small toggle switch blends with standard grade toggles. Larger contacts, backwire clamps on the side terminals. Side wire terminals accept up to number 10 solid wire. Back wire terminal accepts 12 ga or 14 ga wire. Heavy-duty cam action mechanism. Long, broad steel mounting strap, zinc-plated for corrosion resistance. Built-in wire stripper for #12 and #14 wire. Ground screw terminal, stippled line and ground contacts standard. Tri-combo head mounting and terminal screws. 15 A, 120/277 V. cULus listed, NOM certified.

Unit: EA

Additional Information

  • Actuator Type: Cam
  • Color: Ivory
  • Contact Material: Silver
  • Current Rating: 15 A
  • Dielectric Strength: 1500 V
  • Housing Material: Nylon
  • Mounting Type: Wall
  • Number of Poles: 1
  • Temperature Rating: -20 to 60 deg C
  • Terminal Type: Screw
  • Voltage Rating: 120/277 V
  • Wattage Rating: 0.5 to 2 hp


Application: For fluorescent lighting fixtures and a broad variety of applications
