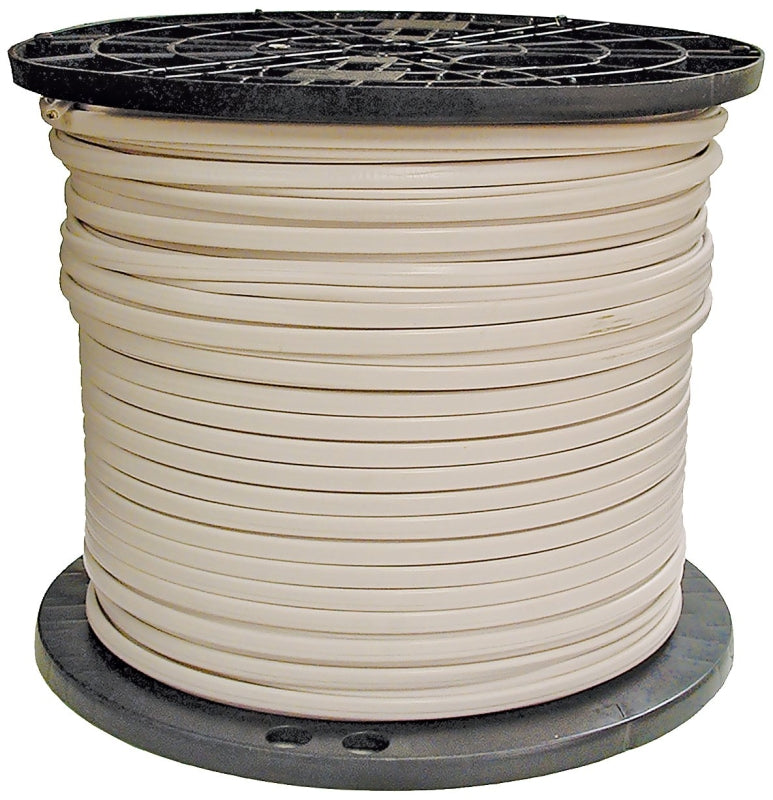

Southwire 14/2NM-WGX1000 Sheathed Cable, 14 AWG Wire, 2 -Conductor, 1000 ft L, Copper Conductor, PVC Insulation

Inner conductors are type THHN, rated 90 deg C, 600 V. Solid strands. Outer jacket is PVC, rated at 75 deg C. Amp rating of the product is limited to that for 60 deg C rated conductors per the National Electric Code Article 336. Dwellings not exceeding 3 floors above grade. Exposed or concealed wiring. May be fished through walls, ceilings and masonry blocks. Use for new wiring or replacement wiring. Only for use in normally dry locations. UL listed.

Unit: L FT

• Conductor Insulation: PVC
• Conductor Material: Copper
• Current Rating: 15 A
• Length: 1000 in
• Number of Conductors: 2
• Operating Temperature: 90 deg C
• Sheath Color: White
• Sheath Material: Nylon
• Strands per Conductor: 1
• Type: NM-B
• Voltage Rating: 600 V
• Wire Size: 14 AWG

Application: For residential wiring such as branch circuits for outlets, switches and other loads
