Simpson Strong-Tie  |  Our Item #: MACE5607908

Model Number: STHD10 - UPC : 044315912504

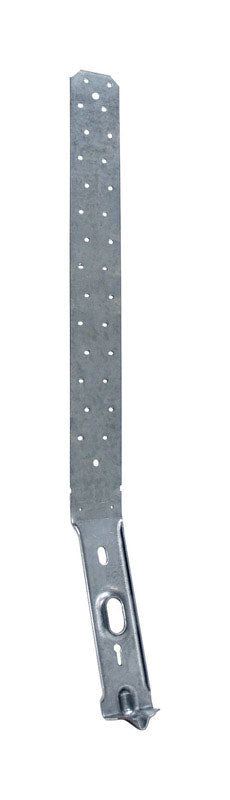

Simpson Strong-Tie 34 in. H X 3 in. W 12 Ga. Steel Strap

$17.49 $22.99
Shipping calculated at checkout.
 More payment options

Shipping Policy

Item ships in 1 to 2 business days. Choose your shipping option during checkout. Read our Shipping Policy and Return Policy.

Features

  • Brand Name:Simpson Strong-Tie
  • Product Type: Strap
  • Brand Name: Simpson Strong-Tie
  • Gauge: 12 Gauge
  • Height: 34 inch
  • Joist Fasteners: 16d
  • Material: Steel
  • Minimum Heel Height: 24-5/8 inch
  • Width: 3 inch

    • Description
    The STHD is an embedded strap-tie hold-down offering high load capacity and a staggered nail pattern to help minimize splitting. The STHD incorporates many features that aid in the correct installation and improve performance. When installed on the forms with the StrapMate strap holder the unique design of the STHD delivers enhanced stability before and during the pour to help prevent both parallel and perpendicular movement. The strap may be bent one full cycle (bent horizontal 90 degrees then bent vertical) to aid wall placement but may cause spalling behind the strap. If the spall is 1 in. or less, measured from the embedment line to the bottom of the spall, full loads apply. STHD10 and STHD14 achieve full load for spalls less than 4 in.. Any portion of the strap left exposed should be protected against corrosion. Other than where noted in the two-pour detail, do not install where: (a) a horizontal cold joint exists within the embedment depth between the slab and foundation wall or footing beneath, unless provisions are made to transfer the load, or the slab is designed to resist the load imposed by the anchor, or (b) slabs are poured over concrete block foundation walls.
  • The nailing pattern allows for nailing to the edges of double 2x's
  • Strap nail slots are countersunk to provide a lower nail head profile
  • The slots below the embedment line enable increased front-to-back concrete bond and help to reduce spalling
  • Use tables for both standard concrete and post-tension slab installations
  • Install before concrete pour with a StrapMate or other holding device
  • Nail strap from the bottom up, install strap plumb
  • Additional studs attached to the shearwall studs or post may be required by the designer for wall sheathing nailing
  • Wood shrinkage after strap installation across horizontal members may cause the strap to buckle outward
  • For installations in severe corrosion environments, refer to general corrosion risks for additional considerations
  • See installation illustrations in the image gallery for rebar information

    • UPC: 044315912504
    Model Number: STHD10
