SCHNEIDER ELECTRIC USA INC  |  Our Item #: MACE3866431

Model Number: HOM3060M200PQCV - UPC : 785901641407

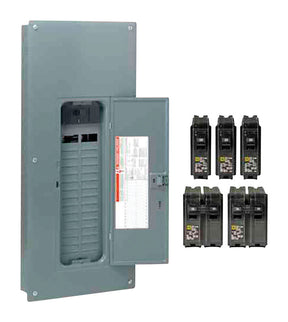

Square D HomeLine 200 amps 120/240 V 30 space 60 circuits Wall Mount Load Center Main Breaker Kit

$219.94 $219.99
Shipping calculated at checkout.

Shipping Policy

Item ships in 1 to 2 business days. Choose your shipping option during checkout. Read our Shipping Policy and Return Policy.

Features

  • Brand Name:Square D
  • Sub Brand: HomeLine
  • Product Type: Load Center Main Breaker Kit
  • Amps: 200 ampere
  • Brand Name: Square D
  • Breakers Included: Yes
  • Circuit Protection Type: Single Pole
  • Depth: 3.8 inch
  • Height: 33.8 inch
  • Maximum Number of Circuits: 60 circuits
  • Mounting Type: Wall Mount
  • Number of Spaces: 30 space
  • Packaging Type: Boxed
  • Sub Brand: HomeLine
  • UL Listed: Yes
  • Volts: 120/240 volt
  • Width: 14.2 inch
  • Indoor or Outdoor: Indoor

    • Description
  • Includes a fully distributed neutral bar, allowing for the installation of Homeline plug-on neutral combination arc fault breakers on any space.
  • Ground and neutral bars accept up to (3) #10-14 equipment grounds.
  • Single phase.
  • Rated 120/240 VAC and 22,000 air short circuit current rating.
  • Automatic flush adjusting cover requires less time to complete the job.
  • Made in the USA.
  • Eliminates most knockout removal.
  • Eliminates most box connectors.
  • Speeds up and simplifies rough-ins.
    • ⁠­
    UPC: 785901641407
    Model Number: HOM3060M200PQCV
