Schneider Electric Usa Inc  |  Our Item #: MACE3508454

Model Number: HOM4080M200PCVP - UPC : 785901977513

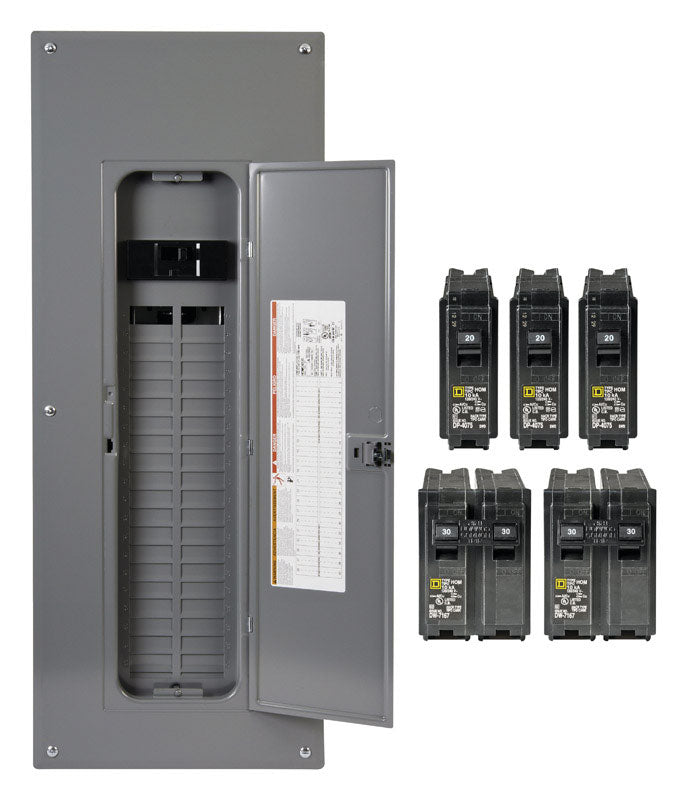

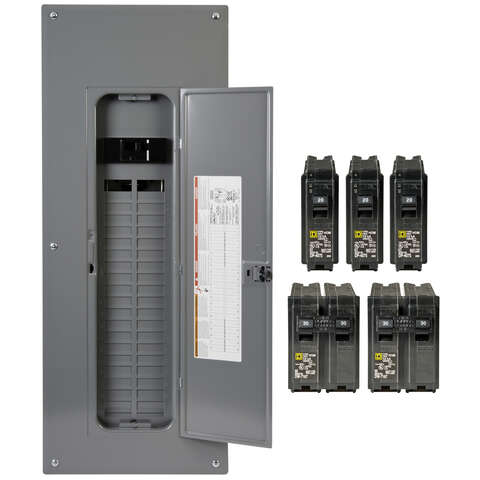

Square D 200 amps 120/240 V 40 space 80 circuits Main Breaker Load Center

$269.94 $269.99
Shipping calculated at checkout.
 More payment options

Shipping Policy

Item ships in 1 to 2 business days. Choose your shipping option during checkout. Read our Shipping Policy and Return Policy.

Features

  • Brand Name:Square D
  • Product Type: Main Breaker Load Center
  • Amps: 200 ampere
  • Brand Name: Square D
  • Breakers Included: Yes
  • Depth: 3.75 inch
  • Height: 39.37 inch
  • Maximum Number of Circuits: 80 circuits
  • Number of Spaces: 40 space
  • UL Listed: Yes
  • Volts: 120/240 volt
  • Width: 14.25 inch
  • Indoor or Outdoor: Indoor

    • Description
    The Square D by Schneider Electric Homeline Value Pack 200 Amp 40-Space 80-Circuit Indoor Convertible Main Breaker Load Center for Plug-on Neutral breakers includes a cover and a selection of breakers. It is UL listed for residential and commercial power distribution. This load center is built with a plated, aluminum bus bar that is tested and is compatible with Square D Homeline circuit breakers. Square D Homeline load centers are designed for the value-minded contractors, remodelers, builders and homeowners. Homeline breaker boxes are engineered for fast installation and wire savings.
  • Includes a fully distributed neutral bar, allowing for the installation of Homeline plug-on neutral combination arc fault breakers on any space
  • Each pole space is compatible with a Square D Homeline full-size, tandem or quad breakers
  • Ground and neutral bars accept up to (3) #10-14 equipment grounds
  • Includes (3) HOM120 Homeline 20 Amp single-pole circuit breakers, (2) HOM230 Homeline 30 Amp double-pole circuit breakers and a combination flush/surface indoor cover
  • Accommodates plug-on secondary surge arrestor (sold separately)
  • Overhead/underground feed simply by rotating the device before installing
  • Single phase, Indoor Main Breaker Homeline Breaker Box
  • Rated 120/240-Volt AC and 22,000 AIR short circuit current rating
  • Designed with straight-in mains to save expensive cable and time
  • 3-ground bar mounting locations (left, right and end) let you pick the easiest spot to wire

    •
    California residents see  Prop 65 Warning(s)


    UPC: 785901977513
    Model Number: HOM4080M200PCVP

    Additional Information
    Schneider Electric Usa Inc

    Square D 200 amps 120/240 V 40 space 80 circuits Main Breaker Load Center

    $269.94 $269.99
    The Square D by Schneider Electric Homeline Value Pack 200 Amp 40-Space 80-Circuit Indoor Convertible Main Breaker Load Center for Plug-on Neutral breakers includes a cover and a selection of breakers. It is UL listed for residential and commercial power distribution. This load center is built with a plated, aluminum bus bar that is tested and is compatible with Square D Homeline circuit breakers. Square D Homeline load centers are designed for the value-minded contractors, remodelers, builders and homeowners. Homeline breaker boxes are engineered for fast installation and wire savings.
  • Includes a fully distributed neutral bar, allowing for the installation of Homeline plug-on neutral combination arc fault breakers on any space
  • Each pole space is compatible with a Square D Homeline full-size, tandem or quad breakers
  • Ground and neutral bars accept up to (3) #10-14 equipment grounds
  • Includes (3) HOM120 Homeline 20 Amp single-pole circuit breakers, (2) HOM230 Homeline 30 Amp double-pole circuit breakers and a combination flush/surface indoor cover
  • Accommodates plug-on secondary surge arrestor (sold separately)
  • Overhead/underground feed simply by rotating the device before installing
  • Single phase, Indoor Main Breaker Homeline Breaker Box
  • Rated 120/240-Volt AC and 22,000 AIR short circuit current rating
  • Designed with straight-in mains to save expensive cable and time
  • 3-ground bar mounting locations (left, right and end) let you pick the easiest spot to wire

    •
    California residents see  Prop 65 Warning(s)


    UPC: 785901977513
    Model Number: HOM4080M200PCVP
