Schneider Electric Usa Inc  |  Our Item #: MACE3508447

Model Number: HOM1224M100PRB - UPC : 785901861195

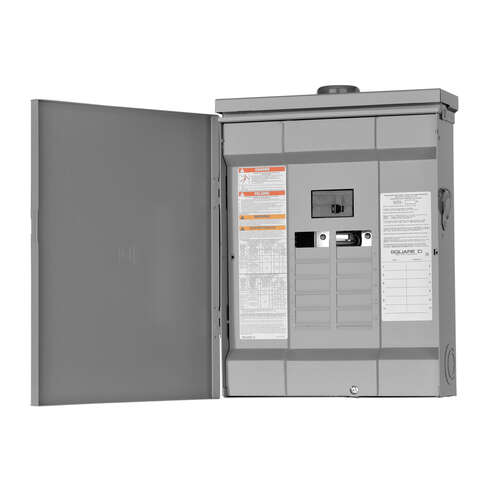

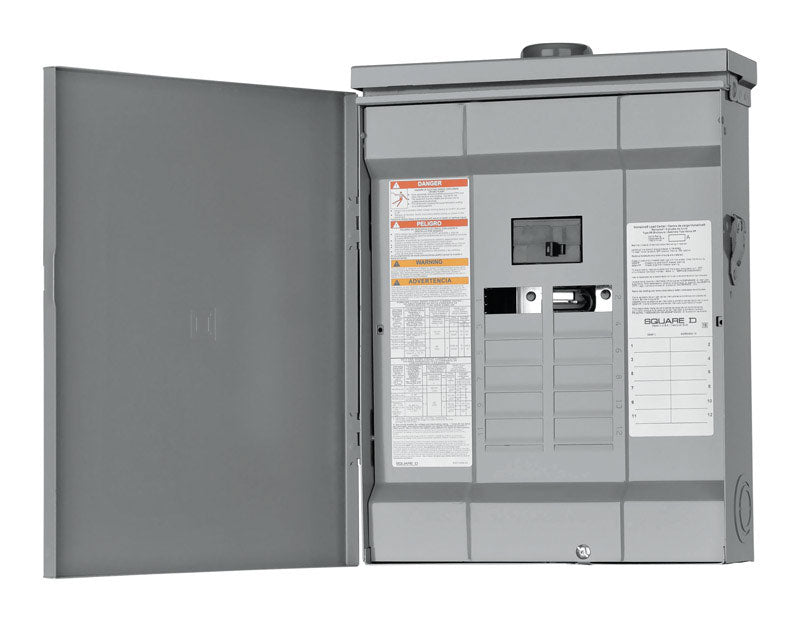

Square D HomeLine 100 amps 120/240 V 12 space 24 circuits Combination Mount Main Breaker Load Center

$149.94 $149.99
Shipping calculated at checkout.
 More payment options

Shipping Policy

Item ships in 1 to 2 business days. Choose your shipping option during checkout. Read our Shipping Policy and Return Policy.

Features

  • Brand Name:Square D
  • Sub Brand: HomeLine
  • Product Type: Main Breaker Load Center
  • Amps: 100 ampere
  • Brand Name: Square D
  • Breakers Included: No
  • Circuit Protection Type: Single Pole
  • Depth: 14.8 inch
  • Height: 18.9 inch
  • Maximum Number of Circuits: 24 circuits
  • Mounting Type: Combination Mount
  • Number of Spaces: 12 space
  • Packaging Type: Boxed
  • Sub Brand: HomeLine
  • UL Listed: Yes
  • Volts: 120/240 volt
  • Width: 18.9 inch
  • Indoor or Outdoor: Outdoor

    • Description
    The Square D Homeline 100 Amp 12-Space 24-Circuit Outdoor Convertible Main Breaker Load Center for Plug-on Neutral breakers is UL listed for residential and commercial power distribution. This load center is built with a plated, aluminum bus bar that is tested and listed only for Homeline circuit breakers. Homeline load centers are designed for the value-minded contractors, remodelers, builders and homeowners. Homeline load centers are engineered for fast installation and wire savings.
  • Includes a fully distributed neutral bar, allowing for the installation of Homeline plug-on neutral combination arc fault breakers on any space
  • Each pole space accepts full-size, tandem or quad breakers
  • Ground and neutral bars accept up to (3) 10-14 equipment grounds
  • Accommodates plug-on secondary surge arrestor (sold separately)
  • Main feeders terminate from the top, feeders can enter from any direction, however, device cannot be rotated
  • Single phase
  • Rated 120/240V AC and 22000 AIR short circuit current rating
  • Rainproof cover features a stainless steel hasp that is easily padlocked for safety from theft
  • Designed with straight-in mains to save expensive cable and time
  • Designed with straight-in mains to save expensive cable and time

    •   California residents see


    UPC: 785901861195
    Model Number: HOM1224M100PRB

    Additional Information
    Schneider Electric Usa Inc

    Square D HomeLine 100 amps 120/240 V 12 space 24 circuits Combination Mount Main Breaker Load Center

    $149.94 $149.99
    The Square D Homeline 100 Amp 12-Space 24-Circuit Outdoor Convertible Main Breaker Load Center for Plug-on Neutral breakers is UL listed for residential and commercial power distribution. This load center is built with a plated, aluminum bus bar that is tested and listed only for Homeline circuit breakers. Homeline load centers are designed for the value-minded contractors, remodelers, builders and homeowners. Homeline load centers are engineered for fast installation and wire savings.
  • Includes a fully distributed neutral bar, allowing for the installation of Homeline plug-on neutral combination arc fault breakers on any space
  • Each pole space accepts full-size, tandem or quad breakers
  • Ground and neutral bars accept up to (3) 10-14 equipment grounds
  • Accommodates plug-on secondary surge arrestor (sold separately)
  • Main feeders terminate from the top, feeders can enter from any direction, however, device cannot be rotated
  • Single phase
  • Rated 120/240V AC and 22000 AIR short circuit current rating
  • Rainproof cover features a stainless steel hasp that is easily padlocked for safety from theft
  • Designed with straight-in mains to save expensive cable and time
  • Designed with straight-in mains to save expensive cable and time

    •   California residents see


    UPC: 785901861195
    Model Number: HOM1224M100PRB
