EATON CORPORATION  |  Our Item #: MACE32245

Model Number: BRP30L200 - UPC : 786689052881

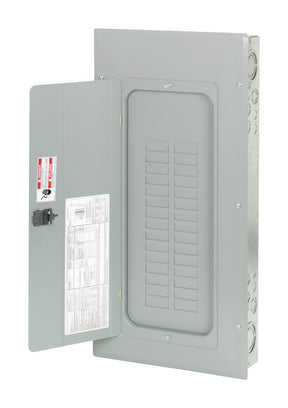

Eaton 200 amps 120/240 V 30 space 40 circuits Combination Mount Main Lug Load Center

$169.94 $169.99
Shipping calculated at checkout.

Shipping Policy

Item ships in 1 to 2 business days. Choose your shipping option during checkout. Read our Shipping Policy and Return Policy.

Features

  • Brand Name:Eaton
  • Product Type: Main Lug Load Center
  • Amps: 200 ampere
  • Brand Name: Eaton
  • Breakers Included: No
  • Circuit Protection Type: Main Lug
  • Depth: 3.88 inch
  • Height: 29.13 inch
  • Maximum Number of Circuits: 40 circuits
  • Mounting Type: Combination Mount
  • Number of Spaces: 30 space
  • Packaging Type: Boxed
  • UL Listed: Yes
  • Volts: 120/240 volt
  • Width: 14.31 inch
  • Indoor or Outdoor: Indoor

    • Description
    Specially designed for easy installation, Eaton's
  • 200 Amp Main Lug Load Center
  • 30-1" Spaces, 40 Circuits
  • Top or Bottom Feed
  • Indoor, NEMA 1
  • Surface or Flush Mount
  • Uses Type BR, BD, BQ, GFCB Eaton Circuit Breakers
  • Uses Type BR, BD, BQ, GFCB Eaton Circuit Breakers

    • UPC: 786689052881
    Model Number: BRP30L200
