Square D | Our Item #:
MORG6700173
Model Number: UTRS213B - UPC : 785901627661

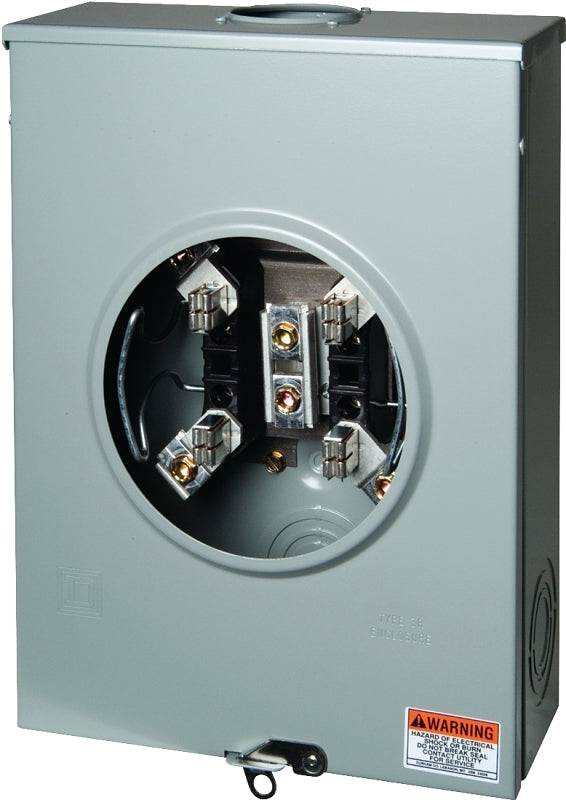

Square D UTRS213B Meter Socket, 1-Phase, 200 A, 600 V, 4-Jaw, Overhead, NEMA 3R Enclosure, Underground Cable Entry
$108.60
$124.95
Unit price
/
Unavailable
Shipping calculated at checkout.
13% off
Square D UTRS213B Meter Socket, 1-Phase, 200 A, 600 V, 4-Jaw, Overhead, NEMA 3R Enclosure, Underground Cable Entry is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Shipping Policy
Shipping Policy
Item ships in 1 to 2 business days. Choose your shipping option during checkout. Read our Shipping Policy and Return Policy.
Square D UTRS213B Meter Socket, 1-Phase, 200 A, 600 V, 4-Jaw, Overh...
$108.60
$124.95
Unit price
/
Unavailable
Features
Description
Description
Single phase, 3-wire, 4-jaw, 600 VAC maximum. 10,000 RMS symmetrical amp short circuit current rating. Hub provisions have an A-type size and its enclosure is made of aluminum. Supplied with bonded neutral. Requires bolt-on hub or closing plate (not included) for hub opening in top endwall. Bypass and jaw release sold separately. It can accommodate buildings supplied by overhead power lines or underground cables. UL listed.
Additional Information
Additional Information
- Cable Entry: Overhead Underground
- Current Rating: 200 A
- Dimensions: 15 in H x 11 in W x 4-1/2 in D
- Enclosure Type: NEMA 3R
- Material: Steel
- Number of Jaws: 4
- Number Of Knockouts: 8
- Number of Phases: 1
- Voltage Rating: 600 V
- Wire Size: 1/0 AWG to 350 kcmil 14 to 2 AWG
