Square D  |  Our Item #: MORG6700157

Model Number: QO112M100PC - UPC : 785901596318

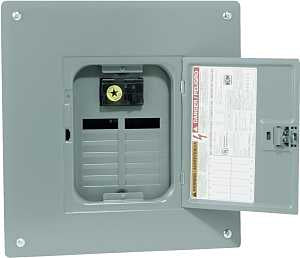

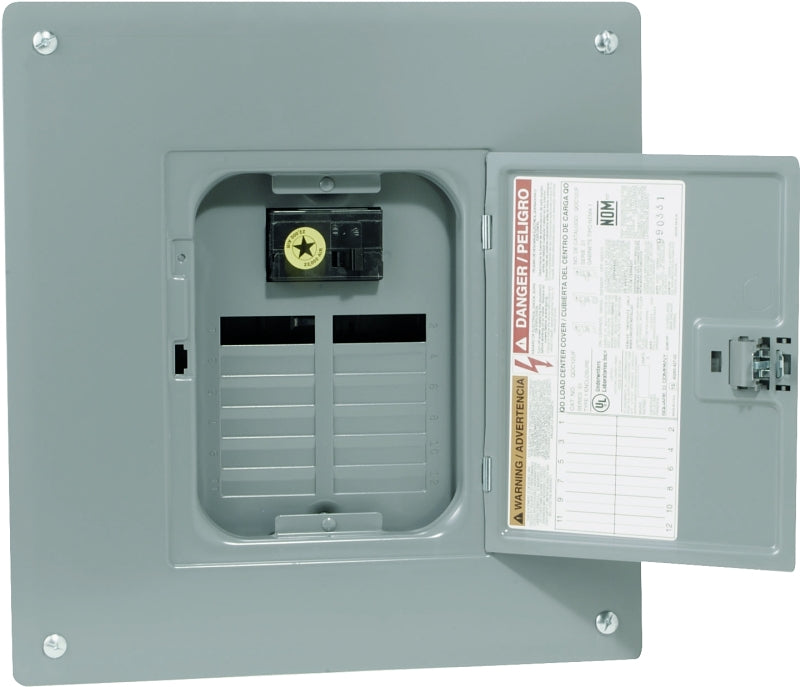

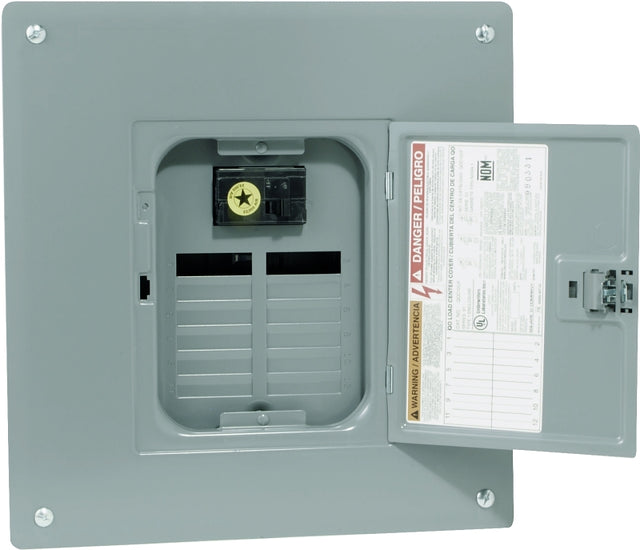

Square D QO112M100C Load Center, 12 -Pole, 100 A, 12 -Space, NEMA 1 Enclosure, Flush, Surface Mounting

$135.37 $155.75
Shipping calculated at checkout.

Shipping Policy

Item ships in 1 to 2 business days. Choose your shipping option during checkout. Read our Shipping Policy and Return Policy.

Features

    Description
    Welded sheet steel. Single phase, 3-wire, split neutral, 12 spaces/12 circuit, 120/240 V. 22,000 AIR factory installed main breaker. Comes with a ground bar and a combination cover for added protection. Shielded copper bus bar. 2-1/2 in knockouts located on the top and bottom. Accepts QO circuit breakers and is compatible with overhead and underground service feeds. UL listed.

    Unit: EA

    MPN: QO112M100PC

    UPC: 785901596318

    Additional Information

    • Bus Bar Material: Copper
    • Cable Size: 6 to 1 AWG
    • Cover/Lid Type: Flush
    • Current Rating: 100 A
    • Enclosure Type: NEMA 1
    • Interrupt Rating: 22 kA
    • Mounting Type: Flush Surface
    • Number of Phases: 1
    • Number of Poles: 12
    • Number Of Spaces: 12
    • Voltage Rating: 120/240 V
    • Wiring Configuration: 3-Wire

    Square D

    Square D QO112M100C Load Center, 12 -Pole, 100 A, 12 -Space, NEMA 1 Enclosure, Flush, Surface Mounting

    $135.37 $155.75
    Welded sheet steel. Single phase, 3-wire, split neutral, 12 spaces/12 circuit, 120/240 V. 22,000 AIR factory installed main breaker. Comes with a ground bar and a combination cover for added protection. Shielded copper bus bar. 2-1/2 in knockouts located on the top and bottom. Accepts QO circuit breakers and is compatible with overhead and underground service feeds. UL listed.

    Unit: EA

    MPN: QO112M100PC

    UPC: 785901596318
