Square D | Our Item #:
MORG6719793
Model Number: HOM612L100SCP - UPC : 047569071232

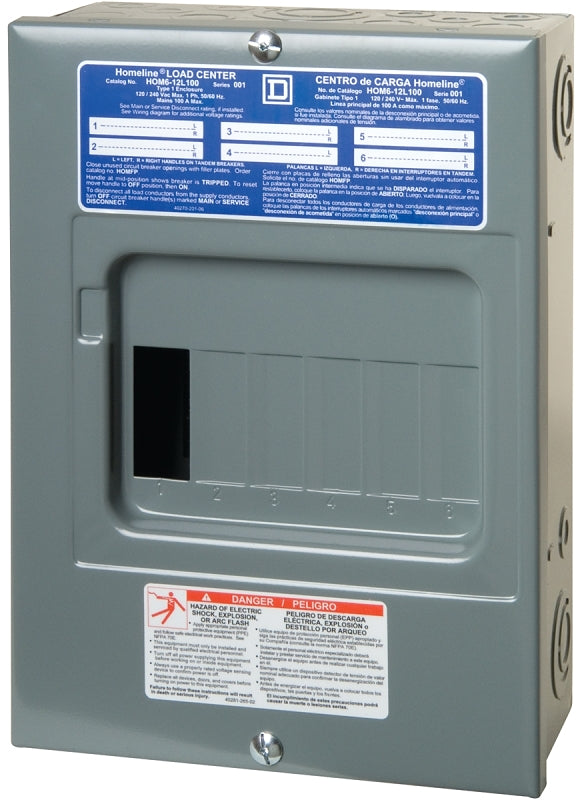

Square D Homeline HOM612L100SCP Load Center, 100 A, 6-Space, 12-Circuit, Main Lug, NEMA 1 Enclosure, Plug, Gray
$34.42
$39.65
Unit price
/
Unavailable
Shipping calculated at checkout.
13% off
Square D Homeline HOM612L100SCP Load Center, 100 A, 6-Space, 12-Circuit, Main Lug, NEMA 1 Enclosure, Plug, Gray is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Shipping Policy
Shipping Policy
Item ships in 1 to 2 business days. Choose your shipping option during checkout. Read our Shipping Policy and Return Policy.
Square D Homeline HOM612L100SCP Load Center, 100 A, 6-Space, 12-Cir...
$34.42
$39.65
Unit price
/
Unavailable
Features
- Accommodates plug-on secondary surge arrestor
- Overhead/underground feed simply by rotating the device before installing
- Surface mount device cover without a door
- Thermoplastic interior assembly is among the most rugged in the industry
- Slot/square drive screws let you use either standard flat blade screwdriver or square-head driver for positive drive and proper torque
Description
Description
Main lug indoor load center, 100 A, 6 space/12 circuit. NEMA type 1 enclosure. Single phase, 3-wire, solid neutral. Expandable load center capacity with the use of tandem or quad breakers. CSA approved for vertical, horizontal or inverted mounting. Accepts aluminum or copper conductors. Approved to only accept Canadian Homeline breakers.
Additional Information
Additional Information
- Breaker/Load Center Type: Main Lug
- Bus Bar Material: Aluminum
- Cable Size: 8 to 1 AWG
- Color: Gray
- Cover/Lid Type: Flush
- Current Rating: 100 A
- Enclosure Type: NEMA 1
- Finish: Baked Enamel
- Interrupt Rating: 10 kA
- Mounting Type: Plug
- Number of Circuits: 12
- Number of Phases: 1
- Number Of Spaces: 6
- Voltage Rating: 120/240 V
- Wiring Configuration: 3-Wire
