Square D  |  Our Item #: MORG6721864

Model Number: HOM612L100RBCP - UPC : 047569071256

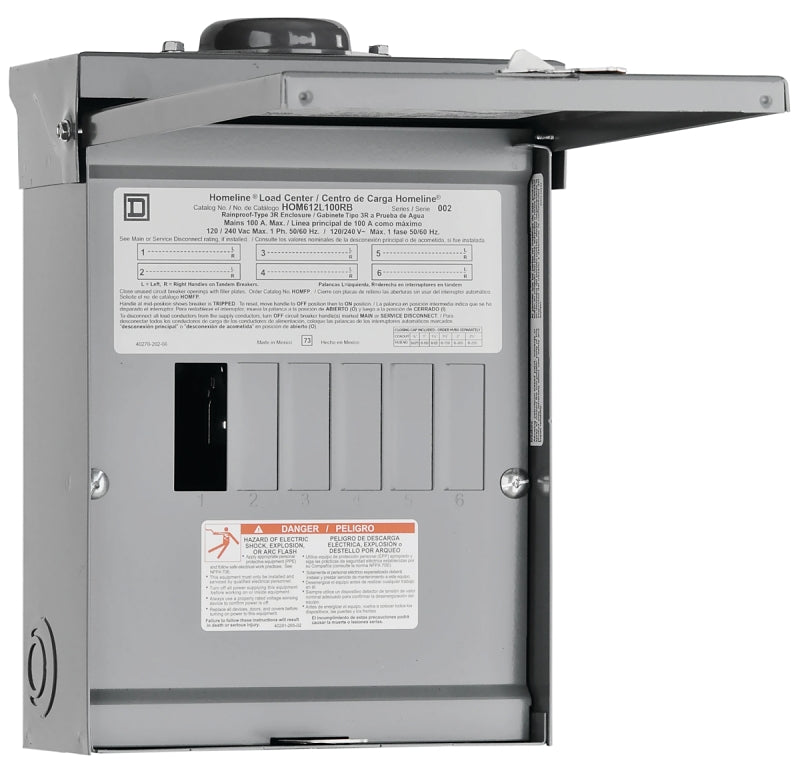

Square D Homeline HOM612L100RBCP Load Center, 100 A, 6 -Space, 12 -Circuit, Main Lug, NEMA 3R Enclosure, Gray

$51.23 $58.99
Shipping calculated at checkout.

Shipping Policy

Item ships in 1 to 2 business days. Choose your shipping option during checkout. Read our Shipping Policy and Return Policy.

Features

  • Accommodates plug-on secondary surge arrestor
  • Main feeders terminate from the top, feeders can enter from any direction, however, device cannot be rotated
  • Rainproof cover features a stainless steel hasp that is easily padlocked for safety from theft
  • Thermoplastic interior assembly is among the most rugged in the industry
  • Slot/square drive screws let you use either standard flat blade screwdriver or square-head driver for positive drive and proper torque
  • Three ground bar mounting locations (left, right and end) let you pick the easiest spot to wire

Description
Outdoor main lug load center, 100 A, 6 space and 12 circuits. Can be wired for underground or overhead feeds with a 2-1/2 in hub on the top and a 1-1/2 in knockout on the bottom. NEMA type 3R enclosure resists rain for durable performance. ANSI certified and UL listed.

Additional Information

  • Breaker/Load Center Type: Main Lug
  • Bus Bar Material: Aluminum
  • Cable Size: 8 to 1 AWG
  • Color: Gray
  • Cover/Lid Type: Surface
  • Current Rating: 100 A
  • Enclosure Type: NEMA 3R
  • Finish: Baked Enamel
  • Interrupt Rating: 10 kA
  • Mounting Type: Plug
  • Number of Circuits: 12
  • Number of Phases: 1
  • Number Of Spaces: 6
  • Voltage Rating: 120/240 V
  • Wiring Configuration: 3-Wire

Square D

Square D Homeline HOM612L100RBCP Load Center, 100 A, 6 -Space, 12 -Circuit, Main Lug, NEMA 3R Enclosure, Gray

$51.23 $58.99
Outdoor main lug load center, 100 A, 6 space and 12 circuits. Can be wired for underground or overhead feeds with a 2-1/2 in hub on the top and a 1-1/2 in knockout on the bottom. NEMA type 3R enclosure resists rain for durable performance. ANSI certified and UL listed.
