Square D | Our Item #:
MORG6720957
Model Number: HOM24L70FCP - UPC : 047569071218

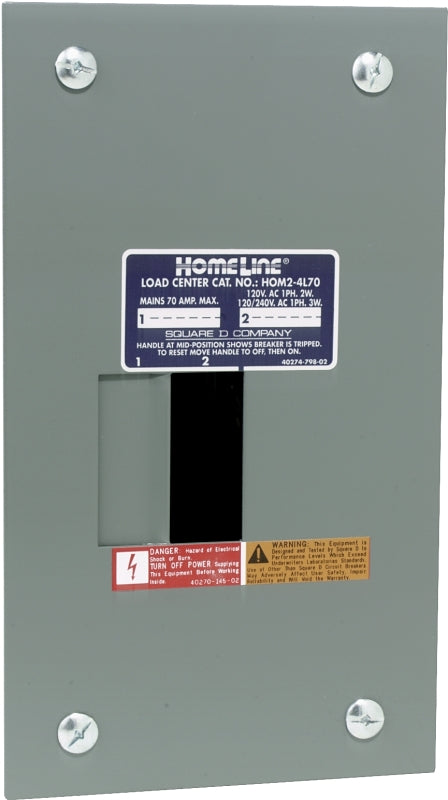

Square D Homeline HOM24L70FCP Load Center, 70 A, 2-Space, 4-Circuit, Main Lug, NEMA 1 Enclosure, Plug, Gray
$24.40
$28.15
Unit price
/
Unavailable
Shipping calculated at checkout.
13% off
Square D Homeline HOM24L70FCP Load Center, 70 A, 2-Space, 4-Circuit, Main Lug, NEMA 1 Enclosure, Plug, Gray is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Shipping Policy
Shipping Policy
Item ships in 1 to 2 business days. Choose your shipping option during checkout. Read our Shipping Policy and Return Policy.
Square D Homeline HOM24L70FCP Load Center, 70 A, 2-Space, 4-Circuit...
$24.40
$28.15
Unit price
/
Unavailable
Features
- Accommodates plug-on secondary surge arrestor
- Main feeders terminate from the top, feeders can enter from any direction, however, device cannot be rotated
- Surface mount device cover without a door
- Thermoplastic interior assembly is among the most rugged in the industry
- Slot/square drive screws let you use either standard flat blade screwdriver or square-head driver for positive drive and proper torque
Description
Description
Main lug indoor load center, 70 A, 2 space/4-circuits. NEMA type 1 enclosure with a flush mount cover. Overhead or underground feeds with 1-1/4 in knockouts in both the top and bottom endwalls. Compatible with Homeline 1 pole and tandem breakers and a PK3GTA1 ground bar kit (not included). UL listed.
Additional Information
Additional Information
- Breaker/Load Center Type: Main Lug
- Bus Bar Material: Aluminum
- Cable Size: 12 to 3 14 to 4 AWG
- Color: Gray
- Cover/Lid Type: Flush
- Current Rating: 70 A
- Enclosure Type: NEMA 1
- Finish: Baked Enamel
- Interrupt Rating: 10 kA
- Mounting Type: Plug
- Number of Circuits: 4
- Number of Phases: 1
- Number Of Spaces: 2
- Voltage Rating: 120/240 V
- Wiring Configuration: 3-Wire
