Simpson Strong-Tie  |  Our Item #: MORG7970999

Model Number: TNT18314TFC75 - UPC : 707392011057

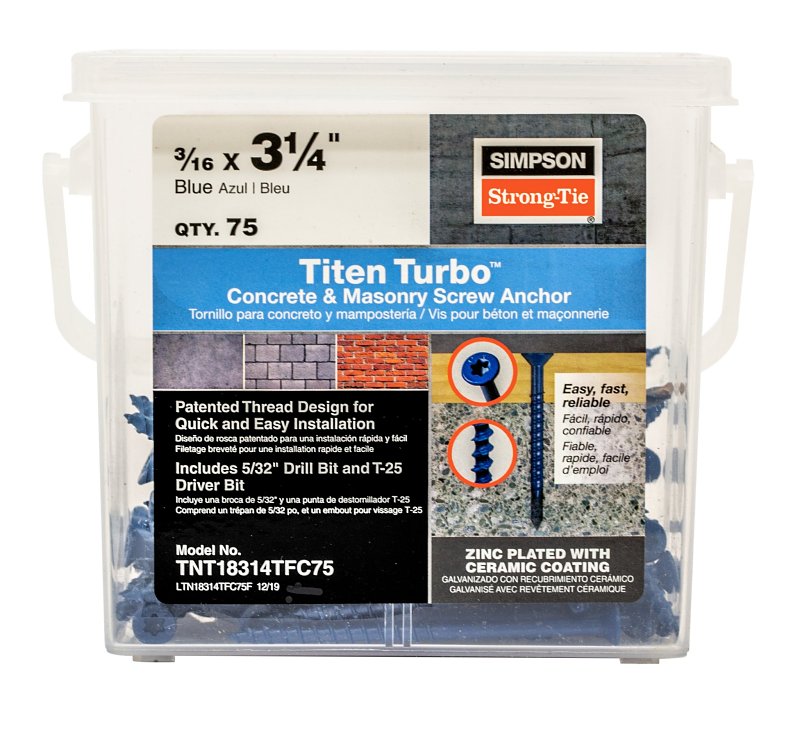

Simpson Strong-Tie Titen Turbo TNT18314TFC75 Screw Anchor, 3/16 in Dia, 3-1/4 in L, Carbon Steel, Zinc Plated

Get special pricing! Apply for a business account today.

Apply Now
$17.22 $23.85
Shipping calculated at checkout.
28% off

Shipping Policy

Item ships in 1 to 2 business days. Choose your shipping option during checkout. Read our Shipping Policy and Return Policy.

Features

  • Torque reduction channel that traps dust where it canâ€t obstruct the thread action, reducing the likelihood of binding in the hole (patent pending)
  • Code listed in accordance with ICC-ES AC193 for concrete applications without cleaning dust from predrilled holes (IAPMO UES ER-712)
  • Serrated screw point for easier starts when fastening wood
  • Matched-tolerance bit not required, use a standard ANSI drill bit for installation
  • Zinc plated with a baked-on ceramic coating
  • Designed for installation with a cordless drill or impact driver
  • Use in dry interior environments only
  • 6-lobe flat head style for a smooth installed profile (T25 drive bit included)

Description
The Titen Turbo screw anchor features an innovative Torque Reduction Channel to trap drilling dust where it can't obstruct thread action, significantly reducing binding, stripping and snapping without compromising strength. The patented reverse thread design enables smooth driving with less torque while providing great holding power. The Torque Reduction Channel also allows more space for dust to help prevent anchors from bottoming out in smaller-diameter screw holes. The Titen Turbo screw anchors feature a serrated leading edge to cut into concrete or masonry and a pointed tip for fast, easy installation in wood-to-concrete and wood-to-wood anchoring applications.
Unit: PK75
UPC: 707392011057
Model Number: TNT18314TFC75

Additional Information

  • Color: Standard Blue
  • Diameter: 3/16 in
  • Drill Size: 5/32 in
  • Drive Type: 6-Lobe
  • Finish: Zinc Plated
  • Head Type: Flat
  • Includes: (1) T25 Drive Bit
  • Length: 3-1/4
  • Material: Carbon Steel
  • Minimum Concrete Thickness: 3-1/4 in
  • Minimum Embedment Depth: 1-3/4 in
  • Shear Strength: 475 lb
  • Tensile Strength: 125000 psi
