Simpson Strong-Tie  |  Our Item #: MORG7970874

Model Number: TNT18134TFC75 - UPC : 707392010913

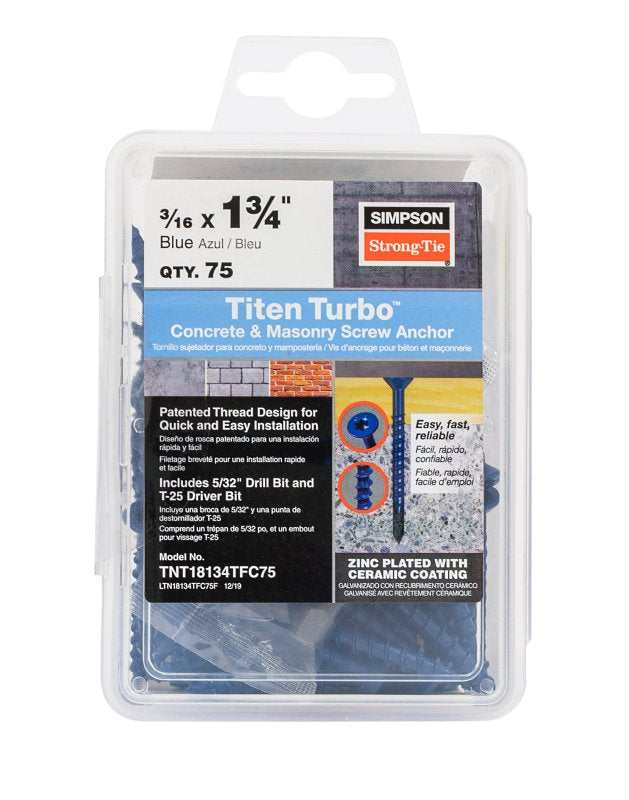

Simpson Strong-Tie Titen Turbo TNT18134TFC75 Screw Anchor, 3/16 in Dia, 1-3/4 in L, Carbon Steel, Flat Head, 75/PK

Get special pricing! Apply for a business account today.

Apply Now
$16.16 $24.59
Shipping calculated at checkout.
34% off

Shipping Policy

Item ships in 1 to 2 business days. Choose your shipping option during checkout. Read our Shipping Policy and Return Policy.

Features

  • Patent-pending torque reduction channel that displaces dust where it can't obstruct the thread action, reducing the likelihood of binding in the hole
  • Code listed in accordance with ICC-ES AC193 for concrete applications without cleaning dust from pre-drilled holes
  • Serrated screw point for easier starts when fastening wood
  • Matched-tolerance bit not required, use a standard ANSI drill bit for installation
  • Zinc-plated with a baked-on ceramic coating
  • Designed for installation with a cordless drill or impact driver
  • Use in dry-interior environments only
  • Excellent tension load performance
  • Six-lobe flat head style for a smooth installed profile

Description
The Titen Turbo screw anchor features an innovative torque reduction channel to trap drilling dust where it can't obstruct thread action, significantly reducing binding, stripping and snapping without compromising strength. The patented reverse thread design enables smooth driving with less torque while providing excellent holding power. The torque reduction channel also allows more space for dust to help prevent anchors from bottoming out in smaller-diameter screw holes. The Titen Turbo screw anchors feature a serrated leading edge to cut into concrete or masonry and a pointed tip for fast, easy installation in wood-to-concrete and wood-to-wood anchoring applications.
Unit: PK75
UPC: 707392010913
Model Number: TNT18134TFC75

Additional Information

  • Color: Standard Blue
  • Diameter: 3/16 in
  • Drill Size: 5/32 in
  • Drive Type: 6-Lobe
  • Finish: Ceramic-Coated/Zinc
  • Head Type: Flat
  • Includes: (1) T25 Drive Bit
  • Length: 1-3/4
  • Material: Carbon Steel
  • Minimum Clearance: 1/4 in
  • Minimum Concrete Thickness: 3-1/4 in
  • Minimum Embedment Depth: 1-3/4 in
  • Tensile Strength: 125000 psi
