Simpson Strong-Tie  |  Our Item #: MORG7970353

Model Number: THD50300HF1 - UPC : 707392474586

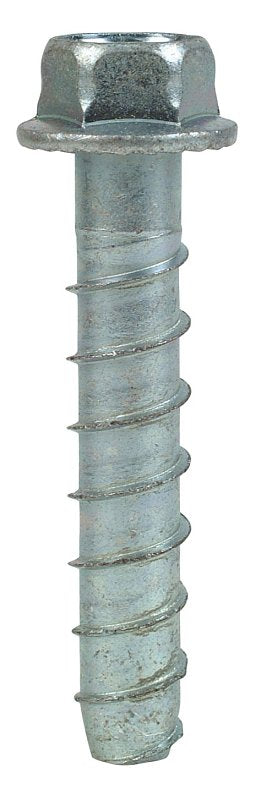

Simpson Strong-Tie Titen HD THD50300HF1 Heavy-Duty Screw Anchor, 1/2 in Dia, 3 in L, Carbon Steel, Zinc, Pack of 20

Get special pricing! Apply for a business account today.

Apply Now
$46.49 $65.00
Shipping calculated at checkout.
28% off

Shipping Policy

Item ships in 1 to 2 business days. Choose your shipping option during checkout. Read our Shipping Policy and Return Policy.

Features

  • Qualified for static and seismic loading conditions
  • Thread design undercuts to efficiently transfer the load to the base material
  • No special drill bit required; designed to install using standard-sized ANSI tolerance drill bits
  • Designed to install using standard-sized ANSI tolerance drill bits
  • Hex washer head requires no separate washer and provides a clean installed appearance
  • Carbon steel Titen HD utilizes a specialized heat-treating process that creates tip hardness for better cutting without compromising the ductility
  • Zinc-plated carbon steel anchor can be used for temporary exterior applications

Description
A high-strength screw anchor for use in cracked and uncracked concrete, as well as uncracked masonry. The Titen HD offers low installation torque and outstanding performance. The Titen HD screw anchor is designed for a wide variety of applications such as sill plates, ledgers, post-bases, seating and other holdown applications. The screw anchor is easy to remove when used in temporary applications such as bracing and formwork, or when a fixture needs to be relocated. The stainless steel Titen HD is the optimal choice for applications in corrosive or extreme environments such as salt water, or when chemical or corrosive solutions are present.
Unit: EA
UPC: 707392474586
Model Number: THD50300HF1

Additional Information

  • Color: Gray
  • Diameter: 1/2 in
  • Drill Size: 1/2 in
  • Drive Type: Hex
  • Finish: Zinc
  • Fixture Thickness: 5/8 to 11/16 in
  • Head Type: Hex Washer
  • Length: 3
  • Material: Carbon Steel
  • Minimum Clearance: 5/8 in
  • Minimum Concrete Thickness: 5 to 6-1/4 in
  • Minimum Embedment Depth: 3-1/4 to 4 in
  • Shear Strength: 7455 lb
  • Tensile Strength: 20130 lb
