Simpson Strong-Tie  |  Our Item #: MORG8229700

Model Number: STB2-62812P1 - UPC : 707392307655

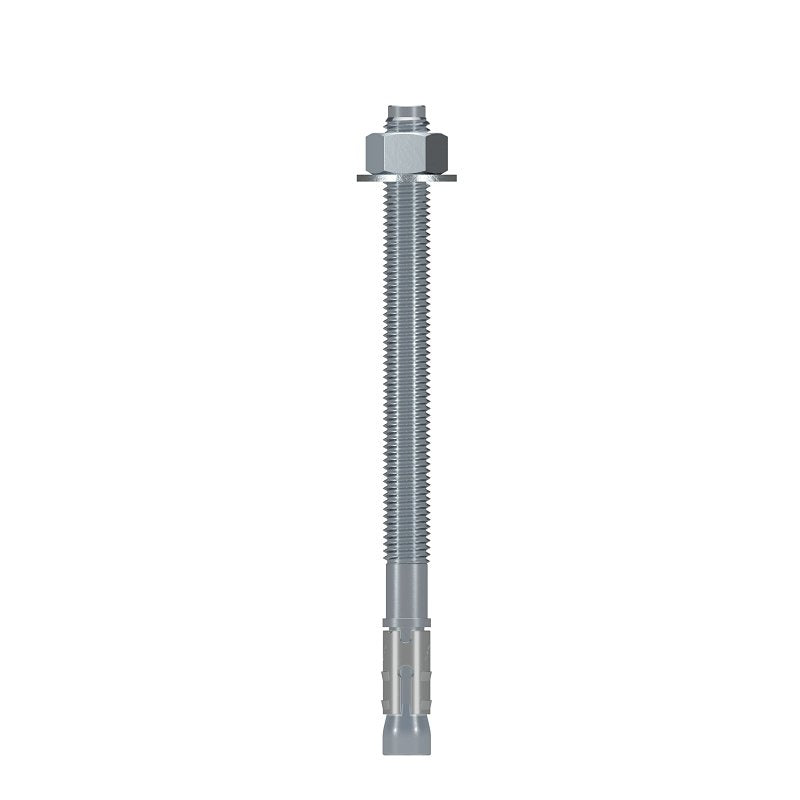

Simpson Strong-Tie Strong-Bolt 2 STB2-62812P1 Wedge Anchor, 5/8 in Dia, 8-1/2 in L, Carbon Steel, Zinc, Pack of 10

Get special pricing! Apply for a business account today.

Apply Now
$66.35 $79.50
Shipping calculated at checkout.
17% off

Shipping Policy

Item ships in 1 to 2 business days. Choose your shipping option during checkout. Read our Shipping Policy and Return Policy.

Features

  • Chamfered top designed to prevent mushrooming during installation
  • Qualified for static and seismic loading conditions
  • Suitable for horizontal, vertical and overhead applications
  • Qualified for minimum concrete thickness of 3-1/4 in and lightweight concrete-over-metal deck thickness of 2-1/2 and 3-1/4 in
  • Standard (ANSI) fractional sizes, fits standard fixtures and installs with common drill bit and tool sizes

Description
Code listed for cracked and uncracked concrete and masonry applications, the Strong-Bolt 2 wedge-type expansion anchor is an optimal choice for high-performance even in seismic and high-wind conditions. Dual undercutting embossments on each clip segment enable secondary expansion should a crack form and intersect the anchor location; this feature significantly increases the ability of Strong-Bolt 2 to carry load if the hole expands.
Unit: EA
UPC: 707392307655
Model Number: STB2-62812P1

Additional Information

  • Color: Gray
  • Diameter: 5/8 in
  • Drill Size: 5/8 in
  • Drive Type: Hex
  • Finish: Zinc
  • Length: 8-1/2
  • Material: Carbon Steel
  • Minimum Concrete Thickness: 3-1/4 in
  • Tensile Strength: 115000 psi
  • Thread Length: 6 in
