Simpson Strong-Tie  |  Our Item #: MORG8229619

Model Number: STB2-50414P1 - UPC : 707392278818

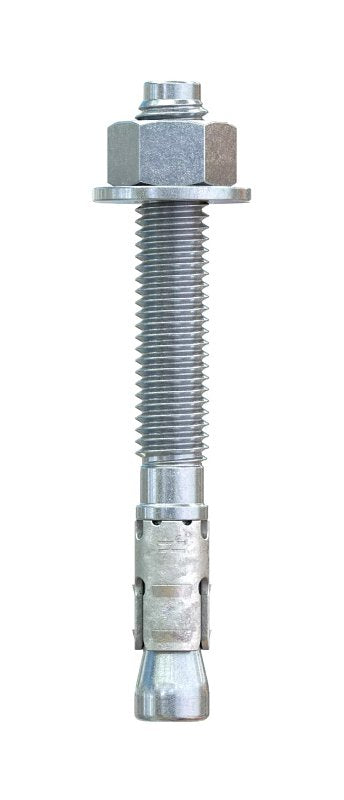

Simpson Strong-Tie Strong-Bolt 2 STB2-50414P1 Wedge Anchor, 1/2 in Dia, 4-1/4 in OAL, Carbon Steel, Zinc, Pack of 10

Get special pricing! Apply for a business account today.

Apply Now
$32.43 $45.50
Shipping calculated at checkout.
29% off

Shipping Policy

Item ships in 1 to 2 business days. Choose your shipping option during checkout. Read our Shipping Policy and Return Policy.

Features

  • Chamfered top designed to prevent mushrooming during installation
  • Suitable for horizontal, vertical and overhead applications
  • Qualified for minimum concrete thickness of 3-1/4 in and lightweight concrete-over-steel deck thickness of 2-1/2 and 3-1/4 in
  • Standard (ANSI) fractional sizes, fits standard fixtures and installs with common drill bit and tool sizes

Description
Code listed for cracked and uncracked concrete and masonry applications, the Strong-Bolt 2 wedge-type expansion anchor is an optimal choice for high-performance even in seismic and high-wind conditions. Dual undercutting embossments on each clip segment enable secondary expansion should a crack form and intersect the anchor location; this feature significantly increases the ability of Strong-Bolt 2 to carry load if the hole expands.
Unit: EA
UPC: 707392278818
Model Number: STB2-50414P1

Additional Information

  • Color: Gray
  • Diameter: 1/2 in
  • Drill Size: 1/2 in
  • Finish: Zinc
  • Material: Carbon Steel
  • Maximum Work Thickness: 3-1/4 in
  • Minimum Embedment Depth: 2-3/4 to 3-7/8 in
  • Overall Length: 4-1/4 in
  • Shear Strength: 7235 lb
  • Tensile Strength: 115000 psi
  • Thread Length: 2-9/16 in
