Simpson Strong-Tie  |  Our Item #: MORG8229569

Model Number: STB2-37500C40 - UPC : 707392013204

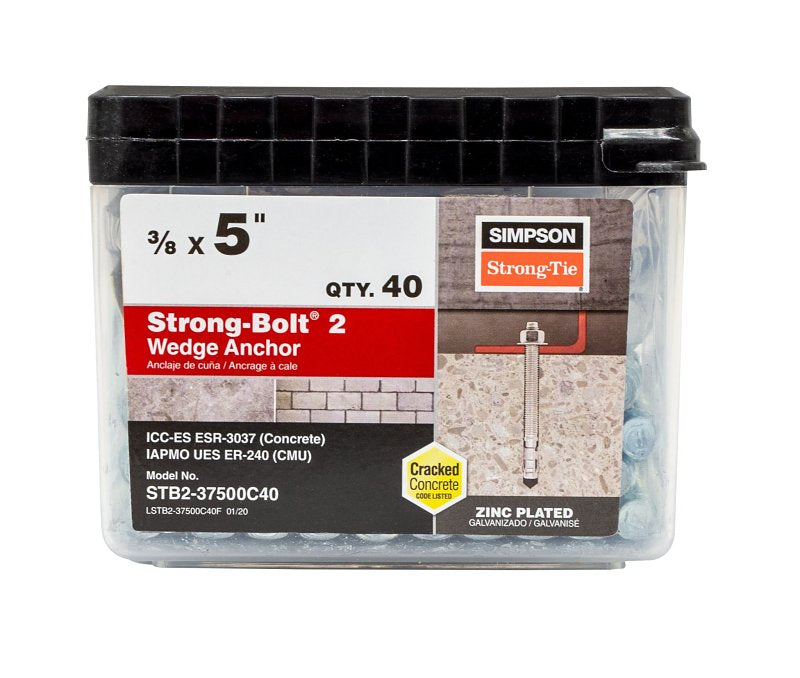

Simpson Strong-Tie Strong-Bolt 2 STB2-37500C40 Wedge Anchor, 3/8 in Dia, 5 in L, Carbon Steel, Zinc Plated

Get special pricing! Apply for a business account today.

Apply Now
$27.10 $31.25
Shipping calculated at checkout.
13% off

Shipping Policy

Item ships in 1 to 2 business days. Choose your shipping option during checkout. Read our Shipping Policy and Return Policy.

Features

  • Chamfered top designed to prevent mushrooming during installation
  • Qualified for static and seismic loading conditions (seismic design categories A through F)
  • Suitable for horizontal, vertical and overhead applications
  • Qualified for minimum concrete thickness of 3-1/4 in and lightweight concrete-over-steel deck thickness of 2-1/2 in and 3-1/4 in
  • Tested per ACI355.2 and AC193
  • Made from zinc plated carbon steel

Description
Code listed for cracked and uncracked concrete and masonry applications, the Strong-Bolt 2 wedge-type expansion anchor is an optimal choice for high-performance even in seismic and high-wind conditions. Dual undercutting embossments on each clip segment enable secondary expansion should a crack form and intersect the anchor location; this feature significantly increases the ability of Strong-Bolt 2 to carry load if the hole expands.
Unit: BX40
UPC: 707392013204
Model Number: STB2-37500C40

Additional Information

  • Color: Silver
  • Diameter: 3/8 in
  • Drill Size: 3/8 in
  • Finish: Zinc Plated
  • Length: 5
  • Material: Carbon Steel
  • Minimum Concrete Thickness: 3-1/4 in
  • Minimum Embedment Depth: 2 to 3-3/8 in
  • Shear Strength: 1040 to 3490 lb
  • Tensile Strength: 115000 psi
  • Thread Length: 3-9/16 in
