Simpson Strong-Tie  |  Our Item #: MORG7502685

Model Number: PSCL 7/16-R50 - UPC : 044315497612

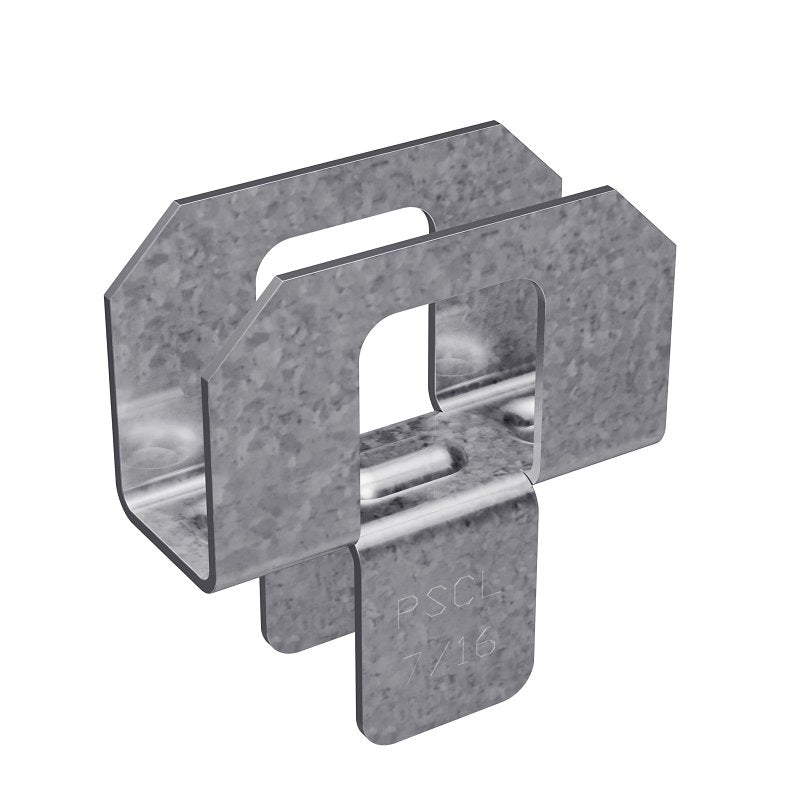

Simpson Strong-Tie PSCL Series PSCL 7/16-R50 Panel Sheathing Clip, 24 Roof Span, 20 ga Thick Material, Steel, Galvanized

Get special pricing! Apply for a business account today.

Apply Now
$8.97 $12.05
Shipping calculated at checkout.
26% off

Shipping Policy

Item ships in 1 to 2 business days. Choose your shipping option during checkout. Read our Shipping Policy and Return Policy.

Features

  • Quick installation, no nails required
  • Provides the 1/8 in space between plywood panels as recommended by the American Plywood Association
  • Use the same size sheathing clip as the panel thickness
  • Galvanized (G90) for extra corrosion resistance
  • Provides a secure environment for sheathing
  • Support for shrinkage and expansion over time
  • Maximum spans may be reduced for low slopes or high uniform loads
  • For 7/16 in panel thickness

Description
The PSCL is designed to brace unsupported sheathing edges when sheathing meets edge to edge without a rafter for support. This light sheathing clip provides a 1/8 in gap to address shrinkage and expansion of roof sheathing. Inserted over the edges of adjacent plywood panels, the PSCL reduces deflection and keeps panels even to maintain a level plane on the structure.
Unit: PK50
UPC: 044315497612
Model Number: PSCL 7/16-R50

Additional Information

  • Finish: Galvanized
  • Material: Steel
  • Material Thickness: 20 ga
  • Maximum Roof Span: 24
  • Number of PC per Spans: 1
  • Width: 1-1/4
