Simpson Strong-Tie  |  Our Item #: MORG7501182

Model Number: PSCL 5/8 - UPC : 044315510304

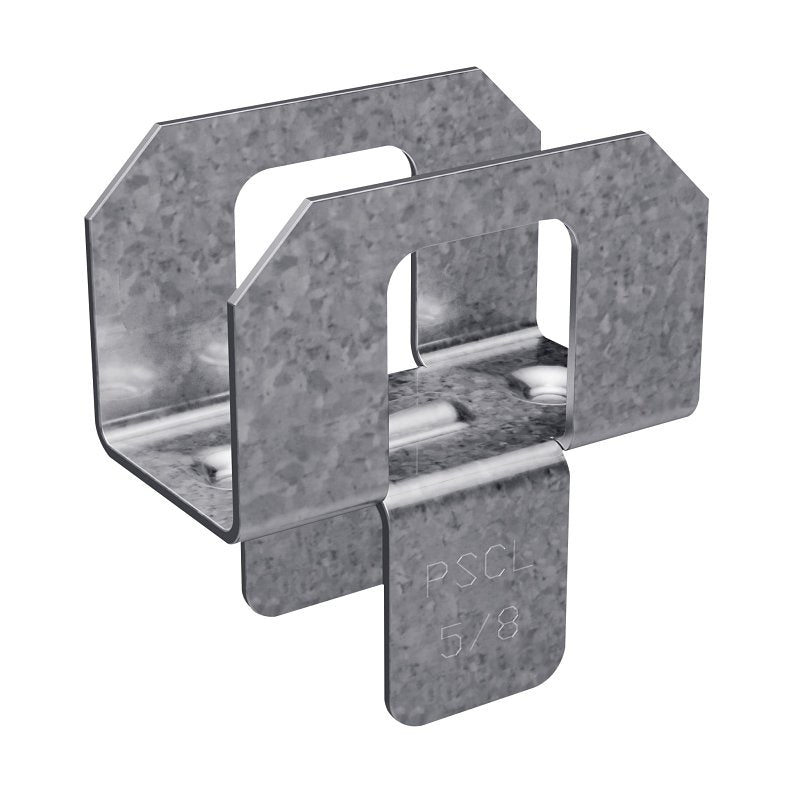

Simpson Strong-Tie PSCL Series PSCL 5/8 Panel Sheathing Clip, 40 Roof Span, 20 ga Thick Material, Galvanized, 250/PK

Get special pricing! Apply for a business account today.

Apply Now
$26.50 $37.85
Shipping calculated at checkout.
30% off

Shipping Policy

Item ships in 1 to 2 business days. Choose your shipping option during checkout. Read our Shipping Policy and Return Policy.

Features

  • Quick installation, no nails required
  • Provides the 1/8 in space between plywood panels as recommended by the American Plywood Association
  • Use the same size sheathing clip as the panel thickness
  • Galvanized (G90) for extra corrosion resistance
  • Provides a secure environment for sheathing
  • Support for shrinkage and expansion over time
  • Maximum spans may be reduced for low slopes or high uniform loads
  • For 5/8 in panel thickness

Description
The PSCL is designed to brace unsupported sheathing edges when sheathing meets edge to edge without a rafter for support. This light sheathing clip provides a 1/8 in gap to address shrinkage and expansion of roof sheathing. Inserted over the edges of adjacent plywood panels, the PSCL reduces deflection and keeps panels even to maintain a level plane on the structure.
Unit: BX250
UPC: 044315510304
Model Number: PSCL 5/8

Additional Information

  • Finish: Galvanized
  • Material: Steel
  • Material Thickness: 20 ga
  • Maximum Roof Span: 40
  • Number of PC per Spans: 1
  • Width: 1-1/4
