Simpson Strong-Tie  |  Our Item #: MORG7496052

Model Number: LTB20 - UPC : 044315478901

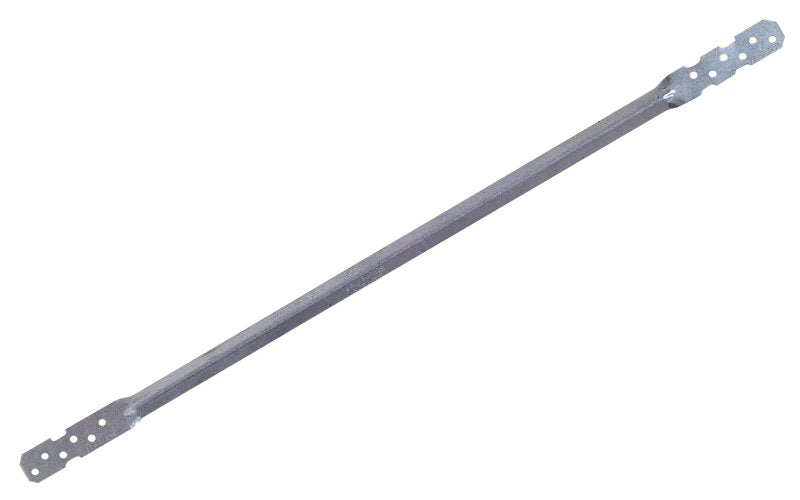

Simpson Strong-Tie LTB Series LTB20 Light Tension Bridging, 20 in L, 2 x 8, 2 x 10 in Post/Joist, Steel, Galvanized, Pack of 200

Get special pricing! Apply for a business account today.

Apply Now
$105.41 $168.00
Shipping calculated at checkout.
37% off

Shipping Policy

Item ships in 1 to 2 business days. Choose your shipping option during checkout. Read our Shipping Policy and Return Policy.

Features

  • Keeps floor system continuity and prevents joist rotation
  • LTB works only in tension, so must be used in cross pairs
  • Galvanized (G90) for extra corrosion resistance
  • Installation flexibility, with multiple fastener holes on each end in a staggered pattern
  • Can be utilized with 6 and 8 in joists at 12 in O.C
  • Install bridging tightly; loose installation may allow floor movement
  • Requires two #10 screws at each end

Description
The LTB provides bracing between floor joists as a critical contribution to the structural strength of a floor. Installed in pairs, this light tension-type bridging keeps joists in place and prevents them from rotating while distributing loads over more than one joist. The LTB features a staggered nail pattern to accommodate 2 x 8 and 2 x 10 joists and is designed for maximum nailing flexibility, with the option to use as few as two nail holes on each end and as many as six.
Unit: EA
UPC: 044315478901
Model Number: LTB20

Additional Information

  • Fastener Size: 0.113 x 2 in
  • Finish: Galvanized
  • Length: 20
  • Material: Steel
  • Post/Joist Size: 2 x 8 2 x 10 in
  • Thickness: 22 ga
