Simpson Strong-Tie  |  Our Item #: MORG7494768

Model Number: HTT5 - UPC : 707392617907

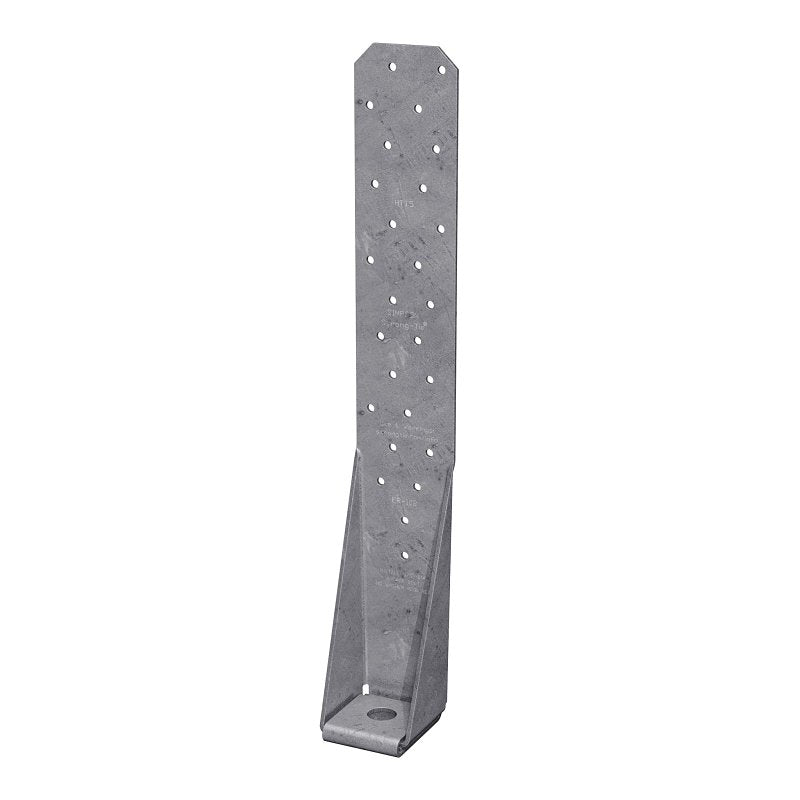

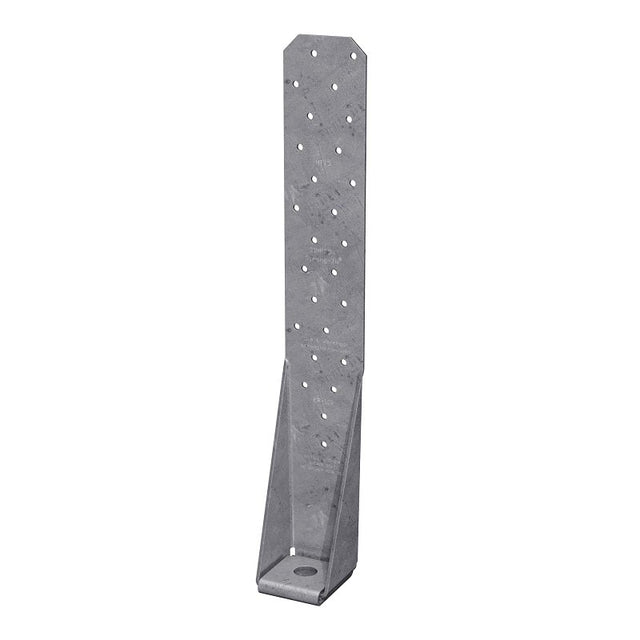

Simpson Strong-Tie HTT HTT5 Heavy Tension Tie, 16 in L, 2-1/2 in W, Steel, Galvanized, Pack of 10

Get special pricing! Apply for a business account today.

Apply Now
$247.57 $352.50
Shipping calculated at checkout.
30% off

Shipping Policy

Item ships in 1 to 2 business days. Choose your shipping option during checkout. Read our Shipping Policy and Return Policy.

Features

  • Ideal for retrofit or new construction projects
  • Can be installed with cast-in-place or post-installed anchor bolts
  • Four-ply formed steel provides increased tension capacity
  • Anchor bolt washers not required
  • Galvanized (G90) for extra corrosion resistance
  • Optimized nailing pattern for better performance and less deflection
  • When using with unreinforced concrete masonry, 3/4 in post-installed anchor bolts are commonly used
  • When installing over wood structural panel sheathing, use a 2-1/2 in long fastener minimum

Description
The HTT is a high-strength solution for resisting tension loads in post-pour, wood-to-concrete connections. This heavy, single-piece formed tension tie is fastened with nails or Strong-Drive SD Connector screws. The HTT has a four-ply formed seat and a design without rivets that does not require washers.
Unit: EA
UPC: 707392617907
Model Number: HTT5

Additional Information

  • Fastening Method: Anchor Bolt Screw
  • Finish: Galvanized
  • Length: 16
  • Material: Steel
  • Material Gauge: 11 ga
  • Width: 2-1/2
