Simpson Strong-Tie  |  Our Item #: MORG8832974

Model Number: ECCQ44SDS2.5 - UPC : 707392551805

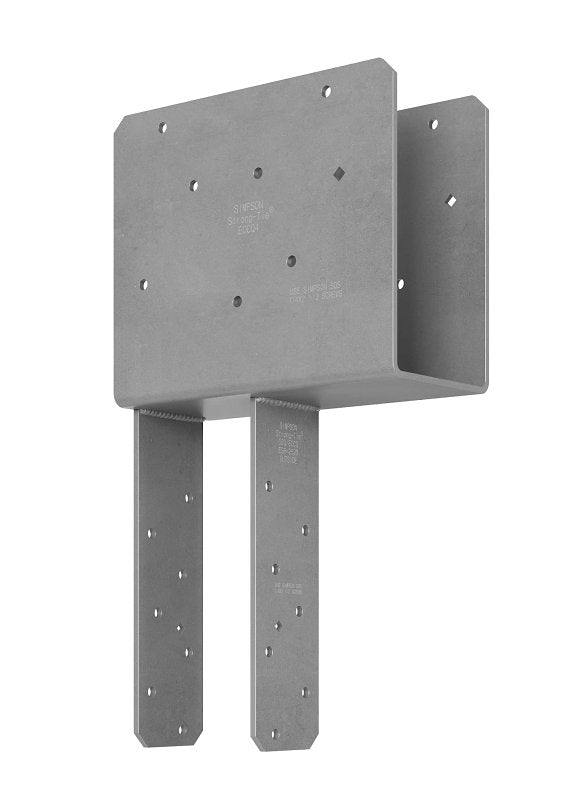

Simpson Strong-Tie ECCQ ECCQ44SDS2.5 Column Cap, 3-5/8 in Post/Joist, Steel, Pack of 4

Get special pricing! Apply for a business account today.

Apply Now
$381.71 $439.16
Shipping calculated at checkout.
13% off

Shipping Policy

Item ships in 1 to 2 business days. Choose your shipping option during checkout. Read our Shipping Policy and Return Policy.

Features

  • Uses Simpson Strong-Tie Strong-Drive SDS screws to provide faster installation and provides a greater net section area of the column compared to bolts
  • SDS screws provide for a lower profile compared to standard through bolts
  • Simpson Strong-Tie gray paint finish
  • The SDS screws provide a lower profile than standard through bolts
  • Certified welds for confidence in strength and loading
  • Uplift loads have been increased for earthquake or wind loading

Description
The ECCQ is designed to provide strong column-beam connections in end-of-beam applications in wood construction. The seat of the column cap provides an additional surface area of bearing that extends beyond the side of the column. The extended bearing surface helps distribute the load from the beam and provide support for the connection. The ECCQ uses Strong-Drive SDS heavy-duty connector screws for fast installation and to attach to a greater net section area of the column than a bolt attachment normally entails.
Unit: EA
UPC: 707392551805
Model Number: ECCQ44SDS2.5

Additional Information

  • Color: Gray
  • Fastener Type: Screw
  • Length: 8-1/2
  • Material: Steel
  • Post/Joist Size: 3-5/8 in
  • Weight Capacity: 7655 lb
  • Width: 3-5/8
