Simpson Strong-Tie  |  Our Item #: MORG8832867

Model Number: CPT44Z - UPC : 707392217404

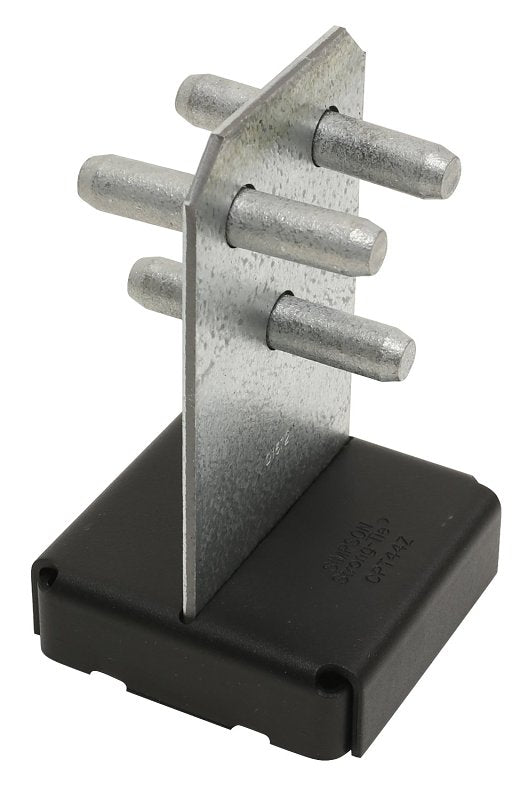

Simpson Strong-Tie CPTZ CPT44Z Concealed Post Base, 4 x 4 in Post, 12 ga Gauge, Steel, ZMAX, Pack of 10

Get special pricing! Apply for a business account today.

Apply Now
$377.97 $506.50
Shipping calculated at checkout.
25% off

Shipping Policy

Item ships in 1 to 2 business days. Choose your shipping option during checkout. Read our Shipping Policy and Return Policy.

Features

  • The 1 in stand-off height is code-required when supporting permanent structures that are exposed to weather or water splash, or in basements
  • The stand-off reduces the potential for decay at post or column ends
  • The anchorage for the CPTZ can be either cast-in-place or retrofit with adhesive or mechanical anchors
  • ZMAX galvanization offers extra corrosion resistance for exterior and treated-wood applications
  • The CPTZ is tested and load-rated for uplift, download and lateral load
  • Simpson Strong-Tie saves installers time by providing all the necessary components to make the post connection in one box (anchors not included)

Description
The CPTZ concealed post-base provides a clean, concealed look while providing a 1 in stand-off height above concrete. The 1 in stand-off reduces the potential for decay at the post-end and satisfies code requirements for posts that are exposed to weather, water splash or in basements. It is part of a system of concealed connectors that includes the CBTZ and CJT.
Unit: EA
UPC: 707392217404
Model Number: CPT44Z

Additional Information

  • Finish: ZMAX
  • Length: 3-1/2
  • Material: Steel
  • Material Gauge: 12 ga
  • Minimum Embedment Depth: 2-1/4 in
  • Post Size: 4 x 4 in
  • Weight Capacity: 11455 lb Down 3035 to 3240 lb Uplift
  • Width: 3-1/2
