Simpson Strong-Tie  |  Our Item #: MORG8832792

Model Number: CCQ66SDS2.5 - UPC : 707392981909

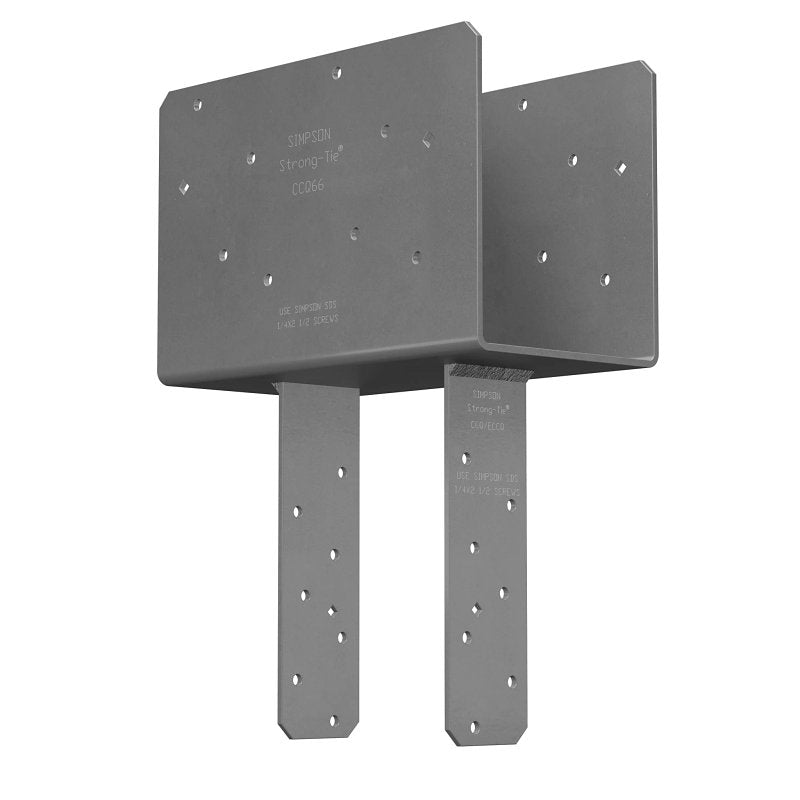

Simpson Strong-Tie CCQ CCQ66SDS2.5 Column Cap, 5-1/2 in Post/Joist, Steel, Pack of 3

Get special pricing! Apply for a business account today.

Apply Now
$320.68 $368.85
Shipping calculated at checkout.
13% off

Shipping Policy

Item ships in 1 to 2 business days. Choose your shipping option during checkout. Read our Shipping Policy and Return Policy.

Features

  • The SDS screws provide a lower profile than standard through bolts
  • Certified welds for confidence in strength and loading
  • Uplift loads have been increased for earthquake or wind loading
  • Diamond holes for temporary fastening
  • Simpson Strong-Tie gray paint finish

Description
The CCQ is designed to provide strong column-beam connections in wood construction. The seat of the column cap provides an additional surface area of bearing that extends beyond each side of the column. The extended bearing surface helps distribute the load from the beam and provide support for the connection. The CCQ uses Strong-Drive SDS heavy-duty connector screws for fast installation and to attach to a greater net section area of the column than a bolt attachment normally entails.
Unit: EA
UPC: 707392981909
Model Number: CCQ66SDS2.5

Additional Information

  • Color: Gray
  • Fastener Type: Screw
  • Includes: (30) 1/4 x 2-1/2 in SDS Screws
  • Length: 11
  • Material: Steel
  • Post/Joist Size: 5-1/2 in
  • Weight Capacity: 30250 lb Down 6785 lb Uplift
  • Width: 5-1/2
