Simpson Strong-Tie  |  Our Item #: MORG8832784

Model Number: CBSQ66-SDS2 - UPC : 707392483502

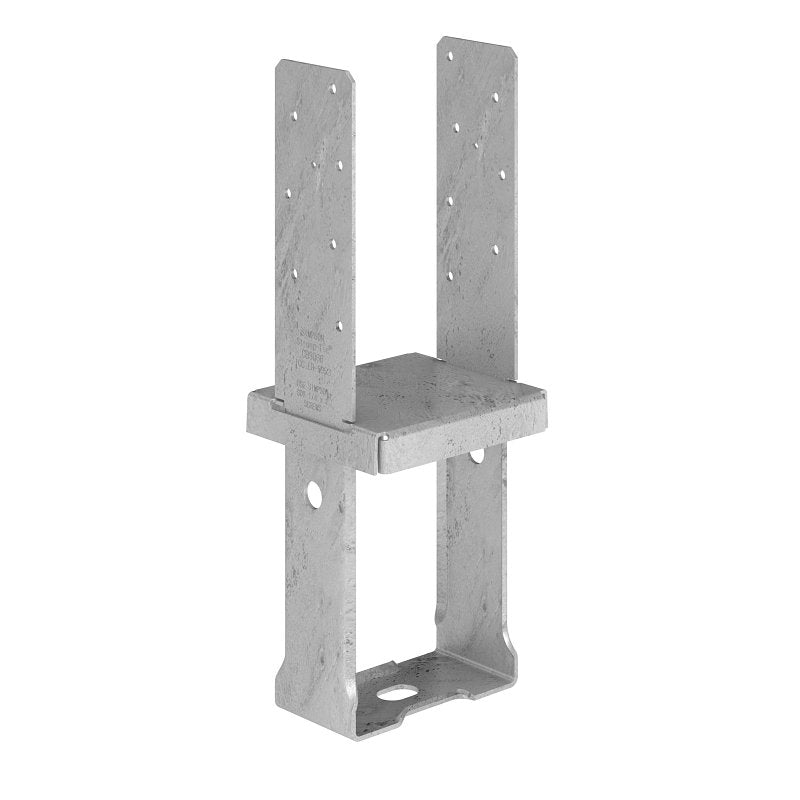

Simpson Strong-Tie CBSQ Series CBSQ66-SDS2 Column Base, 6 x 6 in Post, Steel, Galvanized, Pack of 6

Get special pricing! Apply for a business account today.

Apply Now
$327.01 $376.14
Shipping calculated at checkout.
Sold out
13% off

Shipping Policy

Item ships in 1 to 2 business days. Choose your shipping option during checkout. Read our Shipping Policy and Return Policy.

Features

  • Uses Strong-Drive screws, which allow for fast installation, reduced reveal and high-capacity
  • Provides a 1 in stand-off between post and concrete that meets code requirements
  • Embeds in wet concrete at time of pour
  • The stand-off base reduces the potential for decay at post and column ends
  • Shipped with base plate assembled
  • Galvanized (G90) for extra corrosion resistance

Description
The CBSQ is designed to be the interface between columns and their foundations. The main function of this column base is to link the column to the concrete footing surface and thereby transmit the structure's stresses to the foundation. The CBSQ uses Strong-Drive SDS heavy-duty connector screws (included), which allow for fast installation and reduced reveal and provide a greater net section area of the column than bolts.
Unit: EA
UPC: 707392483502
Model Number: CBSQ66-SDS2

Additional Information

  • Finish: Galvanized
  • Includes: (14) 1/4 x 2 in SDS Screws
  • Material: Steel
  • Post Size: 6 x 6 in
  • Weight Capacity: 14420 lb Down 3060 lb Cracked Uplift 4375 Uncracked
  • Width: 5-1/2
