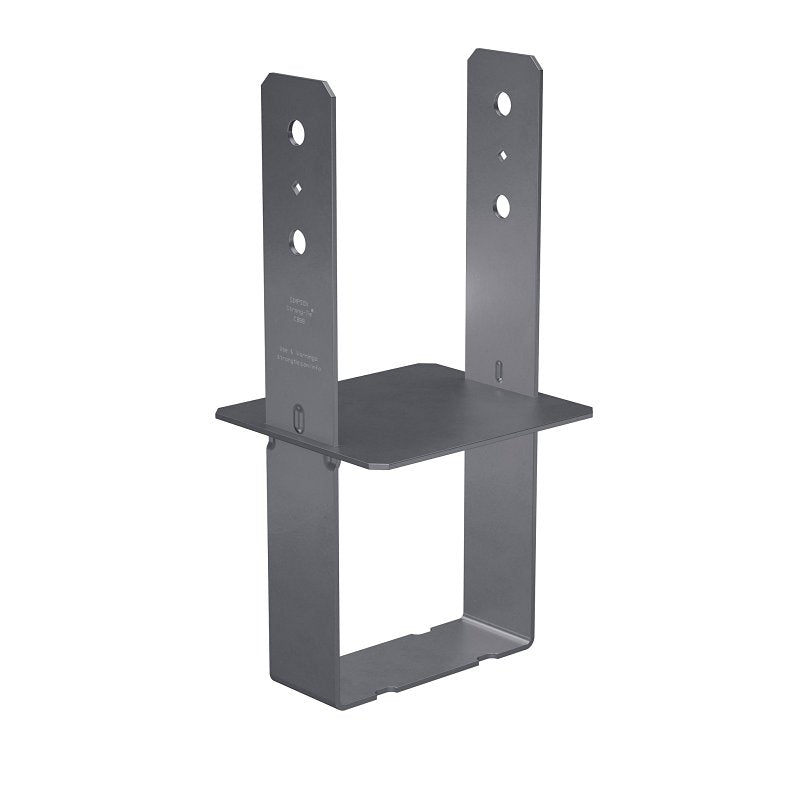

Simpson Strong-Tie CB CB88 Column Base, 8 x 8 in Post, 7 ga Gauge, Steel, Gray

The CB is designed to connect posts to concrete foundations for a wide range of lumber, glulam and engineered-wood product sizes. This column base is either cast-in-place or wet set into the concrete where the bottom of the base plate sits flush with the concrete for full post bearing. The CB is ideal for columns that require high structural values and rugged performance.
Unit: EA
UPC: 044315155208
Model Number: CB88

• Color: Gray
• Material: Steel
• Material Gauge: 7 ga
• Minimum Embedment Depth: 8 in
• Post Size: 8 x 8 in
• Weight Capacity: 3945 lb Cracked SDC-C-F 4510 lb Cracked Wind and SDC 5640 lb Uncracked 56250 lb Down 6445 lb Uncracked
• Width: 7-1/2
