Simpson Strong-Tie  |  Our Item #: MORG3238052

Model Number: BCS2-2/4Z - UPC : 707392380504

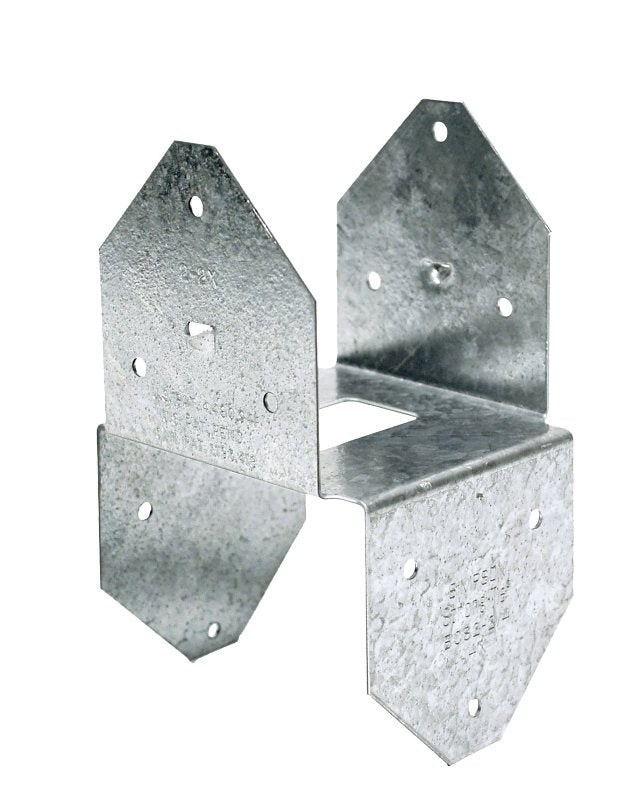

Simpson Strong-Tie BCS BCS2-2/4Z Post Cap, 2 to 2 x 4 in Post/Joist, Steel, ZMAX, Pack of 20

Get special pricing! Apply for a business account today.

Apply Now
$159.46 $191.00
Shipping calculated at checkout.
17% off

Shipping Policy

Item ships in 1 to 2 business days. Choose your shipping option during checkout. Read our Shipping Policy and Return Policy.

Features

  • Provides a positive connection for a post to a wood deck
  • Stronger than angled nailing or screw fastening
  • Reduces the chance of the post splitting and eliminates nailing into end grain
  • Not recommended for non top-supported installations (such as fences or unbraced carports)
  • ZMAX galvanization offers extra corrosion resistance for exterior and treated-wood applications
  • Opposing flanges provide increased lateral resistance
  • Sized specifically for multi-2X widths
  • Do not install bolts into pilot holes
  • Install dome nails on beam; drive nails at an angle through the beam into the post below to achieve the table loads

Description
The BCS is designed to connect a multi-ply member beam to a post. The dimensions of this post cap accommodate the narrower width of multiple 2X members on top of the post. The BCS provides both lateral and uplift support and features double-shear nailing that distributes the load through two points for optimal strength.
Unit: EA
UPC: 707392380504
Model Number: BCS2-2/4Z

Additional Information

  • Fastener Type: Nail
  • Finish: ZMAX
  • Length: 2-7/8
  • Material: Steel
  • Nail Diameter: 0.162 in
  • Post/Joist Size: 2 to 2 x 4 in
  • Width: 3-9/16
