Simpson Strong-Tie BC Series BC6Z Post Cap, Steel, ZMAX, 3-3/8 in H, 1/PK

Name: Simpson Strong-Tie BC Series BC6Z Post Cap, Steel, ZMAX, 3-3/8 in H, 1/PK
Brand: Simpson Strong-Tie
SKU: MORG3238045
Price: 26.99 USD
Availability: InStock

Get special pricing! Apply for a business account today.

Apply Now

$26.99 $34.19

Shipping calculated at checkout.

21% off

Shipping Policy

Item ships in 1 to 2 business days. Choose your shipping option during checkout. Read our Shipping Policy and Return Policy.

Features

Provides a positive connection for a post to a wood deck
Stronger than angled nailing or screw fastening
Reduces the chance of the post splitting and eliminates nailing into end grain
Not recommended for non top-supported installations (such as fences or unbraced carports)
ZMAX galvanization offers extra corrosion resistance for exterior and treated wood applications
Opposing flanges provide increased lateral resistance
Attains full allowable load using either common nail or pneumatic nail sizes
Do not install bolts into pilot holes
Install with 0.162 x 3-1/2 in nails or 0.162 x 2-1/2 in nails

Description

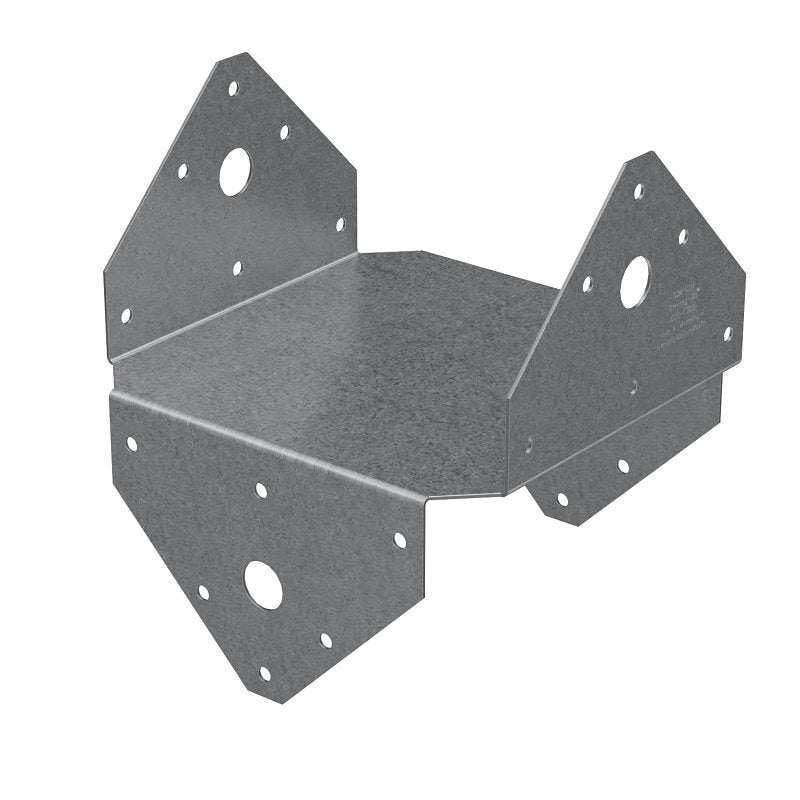

The BC post cap is designed to connect a beam to a post. The 18 ga material of this post cap makes it ideal for light-duty connections. The BC provides uplift and lateral resistance and includes sizes for both nominal and rough lumber.
Unit: EA
UPC: 707392817505
Model Number: BC6Z

Additional Information

Fastener Type: Nail
Finish: ZMAX
Length: 4-3/8
Material: Steel
Nail Diameter: 0.162 in
Width: 5-1/2
