Simpson Strong-Tie  |  Our Item #: MORG3237930

Model Number: BC4 - UPC : 044315100000

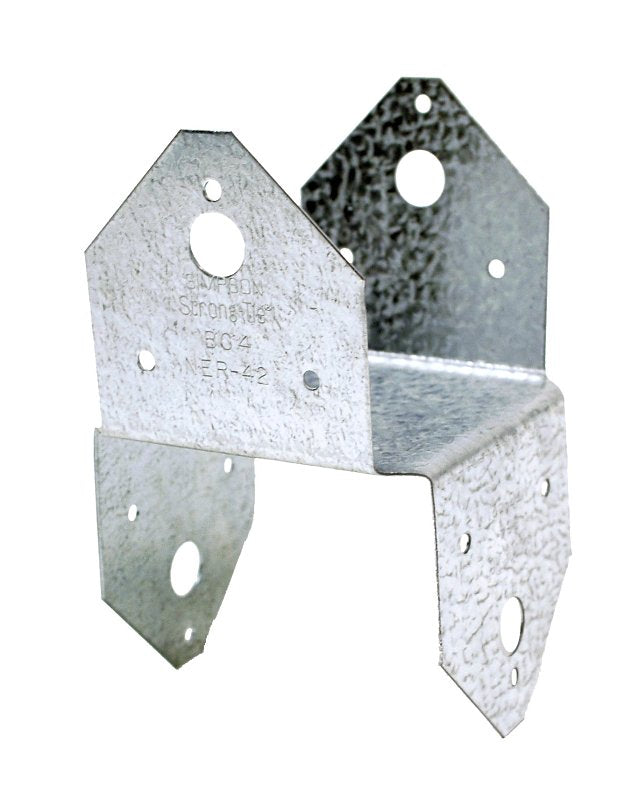

Simpson Strong-Tie BC Series BC4 Post Cap, 1000 lb Lateral, 605 lb Uplift, Steel, Galvanized, 1/PK

Get special pricing! Apply for a business account today.

Apply Now
$6.80 $7.89
Shipping calculated at checkout.
14% off

Shipping Policy

Item ships in 1 to 2 business days. Choose your shipping option during checkout. Read our Shipping Policy and Return Policy.

Features

  • Provides a positive connection for a post to a wood deck
  • Stronger than angled nailing or screw fastening
  • Reduces the chance of the post splitting and eliminates nailing into end grain
  • Not recommended for non top-supported installations (such as fences or unbraced carports)
  • Galvanized (G90) for extra corrosion resistance
  • Opposing flanges provide increased lateral resistance
  • Attains full allowable load using either common nail or pneumatic nail sizes
  • Do not install bolts into pilot holes
  • Install with 0.162 x 3-1/2 in nails or 0.162 x 2-1/2 in nails

Description
The BC post cap is designed to connect a beam to a post. The 18 ga material of this post cap makes it ideal for light-duty connections. The BC provides uplift and lateral resistance and includes sizes for both nominal and rough lumber.
Unit: EA
UPC: 044315100000
Model Number: BC4

Additional Information

  • Fastener Type: Nail
  • Finish: Galvanized
  • Length: 2-7/8
  • Material: Steel
  • Nail Diameter: 0.162 in
  • Weight Capacity: 1000 lb Lateral 605 lb Uplift
  • Width: 3-9/16
