Simpson Strong-Tie  |  Our Item #: MORG3237476

Model Number: AC4Z - UPC : 044315337208

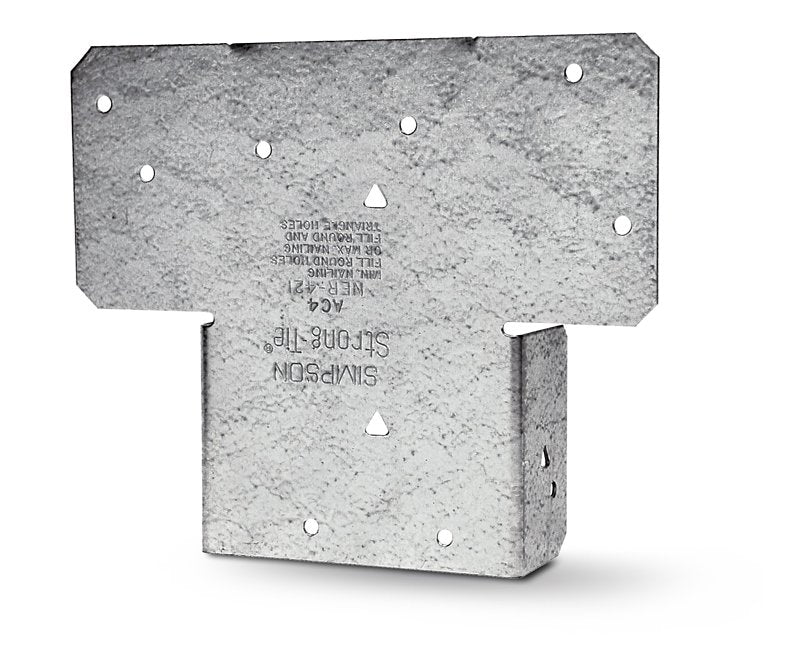

Simpson Strong-Tie AC AC4Z Post Cap, 4 x 4 in Post/Joist, Steel, ZMAX, Pack of 20

Get special pricing! Apply for a business account today.

Apply Now
$138.92 $179.00
Shipping calculated at checkout.
22% off

Shipping Policy

Item ships in 1 to 2 business days. Choose your shipping option during checkout. Read our Shipping Policy and Return Policy.

Features

  • Eliminates nailing into end grains
  • Stronger than angled nailing or screw fastening
  • ZMAX galvanization offers extra corrosion resistance for exterior and treated-wood applications
  • Load-rated when installed in pairs
  • Maximum nailing option for increased loads
  • Fill all round holes for minimum load capacity, fill all round and all triangular holes for maximum load capacity

Description
The AC is designed to provide a secure connection between a beam and a post. This post cap is ideal for new or retrofit applications where structural support is needed. The AC features both minimum and maximum nailing patterns for different load options.
Unit: EA
UPC: 044315337208
Model Number: AC4Z

Additional Information

  • Finish: ZMAX
  • Length: 6-1/2
  • Material: Steel
  • Post/Joist Size: 4 x 4 in
  • Suitable for: 4X Lumber
  • Weight Capacity: 1475 lb Lateral 2490 lb Uplift
  • Width: 6-1/2
