Simpson Strong-Tie  |  Our Item #: MORG3237336

Model Number: ABA44Z - UPC : 044315430701

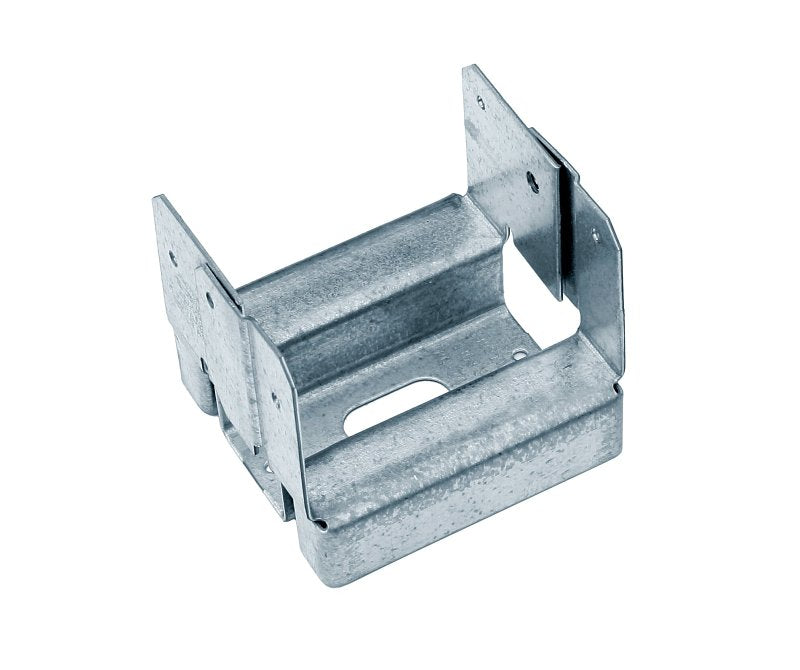

Simpson Strong-Tie ABA Series ABA44Z Post Base, 4 x 4 in Post, 16 ga, Steel, ZMAX, Pack of 20

Get special pricing! Apply for a business account today.

Apply Now
$184.86 $277.80
Shipping calculated at checkout.
33% off

Shipping Policy

Item ships in 1 to 2 business days. Choose your shipping option during checkout. Read our Shipping Policy and Return Policy.

Features

  • The slot in the base enables flexibility around the anchor bolt, making precise post placement easier
  • 1 in standoff design meets code requirements for structural posts installed in basements or exposed to weather or water splash
  • Increased uplift loads for earthquake or wind loading
  • ZMAX galvanization offers extra corrosion resistance for exterior and treated wood applications

Description
The ABA is designed to attach wooden posts to existing concrete. The built-in 1 in standoff of this adjustable post-base helps to prevent rot at the end of the post. The ABA has a slotted anchor hole in the base for adjustability and attaches to the post with nails or Strong-Drive SD Connector screws. This versatile post-base makes a cost effective option for securing a post to the foundation. This post-base is available in model sizes for double 2X, 4 x 4, 4 x 6 and 6 x 6 lumber, both nominal and rough. The new double 2X size can be used for installing a structural post consisting of two 2 x 4 studs nailed together as well as for securing double 2X beams to a footing for ground level decks.
Unit: EA
UPC: 044315430701
Model Number: ABA44Z

Additional Information

  • Finish: ZMAX
  • Length: 3-3/8
  • Material: Steel
  • Material Gauge: 16 ga
  • Post Size: 4 x 4 in
  • Weight Capacity: 5925 lb Down DF/SP 690 lb Uplift
  • Width: 3-9/16
