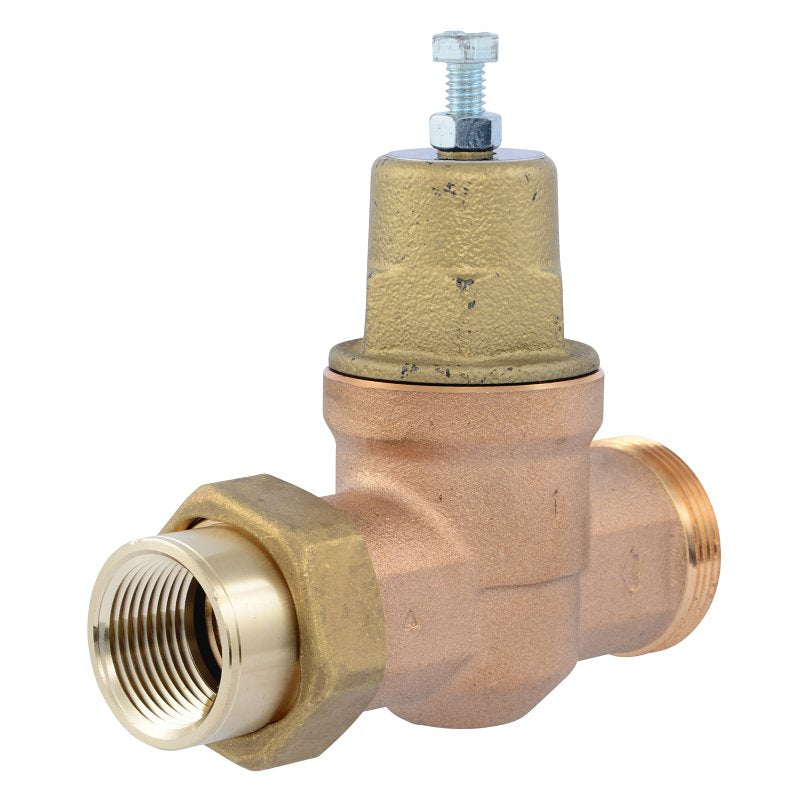

SharkBite EB45 Series PVA20M-SUTH-60 Pressure Regulating Valve, 1 in Connection, MNPT x FNPT, 10 to 70 psi Regulating

The lead-free EB45 water pressure regulator features a half cartridge design that offers the performance of a high-end, cartridge-based valve and the price of a traditional regulator. The valve construction is similar to a traditional regulator in that it retains a separate spring chamber and adjusting screw, but offers the simplicity and maintenance benefits of a cartridge-based valve. The EB45 pressure regulator valve comes factory set at 60 psi but may be adjusted between 10 to 70 psi and includes an integrated back-check feature in case the pressure in the system exceeds the incoming pressure.
Unit: EA
UPC: 697285110861
Model Number: PVA20M-SUTH-60

• Additional Information: Metal Top Type
• Body Material: Brass
• Connection Size: 1 in
• Connection Type: MNPT x FNPT
• Dimensions: 5-3/16 in L x 2-1/8 in W
• Media: Water
• Operating Pressure: 400 psi
• Regulating Pressure: 10 to 70 psi
• Softgoods material: EPDM/Polyphenylene
• Temperature Rating: 33 to 180 deg F
• Trim Material: Iron/Stainless Steel/Steel
