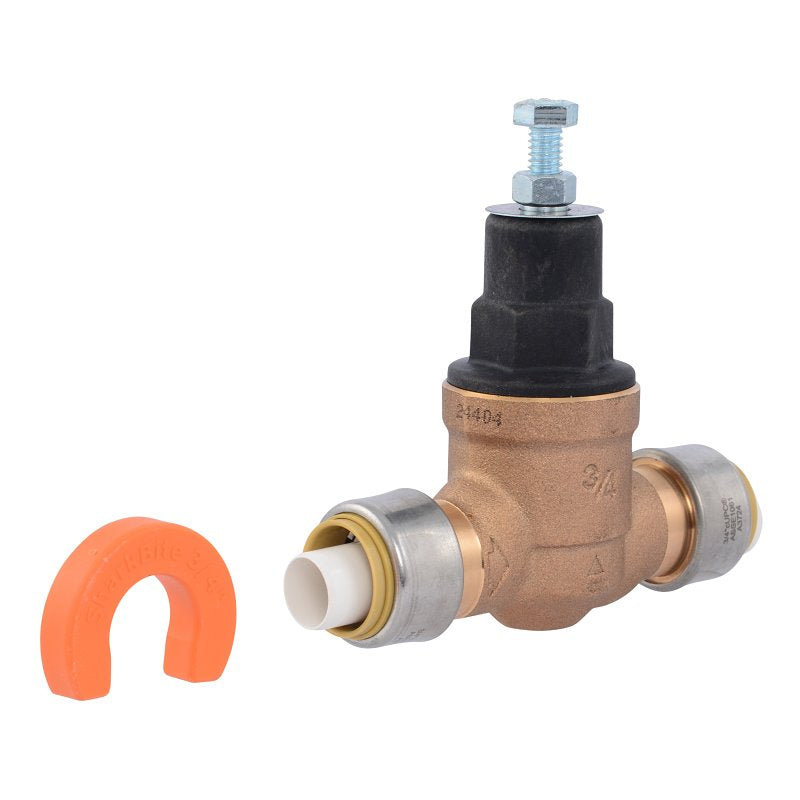

SharkBite EB45 Series PVA16P-DSB-60 Pressure Regulating Valve, 3/4 in Connection, Pushfit, 10 to 70 psi Regulating

The EB45 pressure regulator with SharkBite push-fit connections features a half cartridge design that offers the performance of a high-end, cartridge-based valve and the price of a traditional regulator. The valve construction is similar to a traditional regulator in that it retains a separate spring chamber and adjusting screw, but offers the simplicity and maintenance benefits of a cartridge-based valve. The EB45 comes factory set at 60 psi but may be adjusted between 10 to 70 psi. The EB45 is available with several different SharkBite connections for ease-of installation and a trustworthy watertight seal. EB45 SharkBite options include double union SharkBite, Direct SharkBite or Direct SharkBite with slip feature and includes an integrated back-check feature in case the pressure in the system exceeds the incoming pressure.
Unit: EA
UPC: 697285110694
Model Number: PVA16P-DSB-60

• Additional Information: Poly Top Type
• Body Material: Brass
• Connection Size: 3/4 in
• Connection Type: Pushfit
• Dimensions: 1-47/64 in W
• Media: Water
• Operating Pressure: 400 psi
• Regulating Pressure: 10 to 70 psi
• Softgoods material: EPDM/Polyphenylene
• Temperature Rating: 33 to 180 deg F
• Trim Material: Iron/Stainless Steel/Steel
