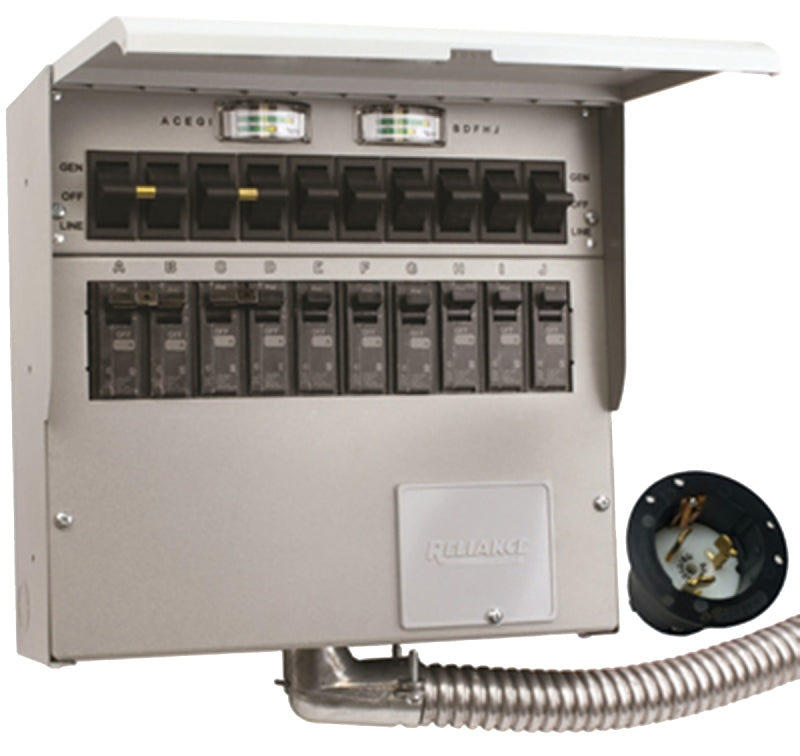

Reliance Controls Pro/Tran 2 R510A Transfer Switch, 1-Phase, 50/100 A, 125/250 V, 10-Circuit, 10-Breaker

The Reliance Pro/Tran 2 outdoor rated (NEMA 3R) transfer switches are ideal for outdoor installation in residential and commercial applications. The gasketed steel cabinet is powder-coated with a key lock door and keys and comes with a factory installed power inlet on the bottom to connect the generator cord. Included is a 16 in L of 1 in flexible non-metallic, liquid-tight conduit with fittings. Simply mount the cabinet, attach the conduit and feed the factory marked wires from the transfer switch into the load center. Select the load center circuits needed in an emergency and connect them to the wires leads from the transfer switch. Each cabinet includes five knockouts, one on each side and two in the back are combination 1/2 in, 3/4 in, 1 in knockouts and the one on the bottom is a combination 1/2 in, 3/4 in knockout. All Raintight Pro/Tran 2 transfer switches feature 1 in circuit breakers, power inlet and non-defeatable (break-before-make) double-throw switches. All 125/250 V models feature exclusive Reliance color coded wattmeter's.

• Current Rating: 50/100 A
• Dimensions: 13 in H x 12 in W x 5 in D
• Enclosure Type: NEMA 3R
• Finish: Powder-Coated
• Includes: Conduit with Fittings
• Number of Breakers: 10
• Number of Circuits: 10
• Number of Phases: 1
• Number of Poles: 1 2
• Voltage Rating: 125/250 V
• Wattage Rating: 12500 W
• Wire Size: 6 AWG
