Raymarine  |  Our Item #: MLAN152-T70319

Model Number: T70319 - UPC : 723193817049

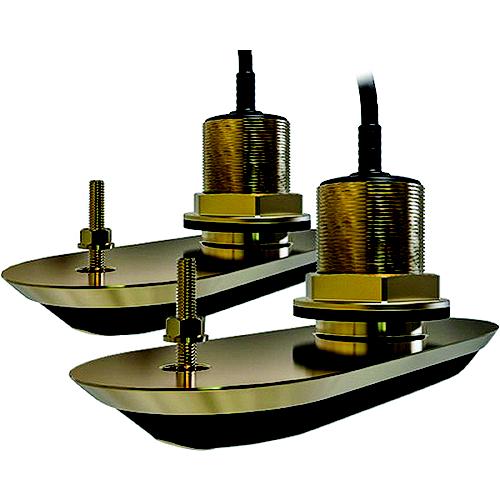

Raymarine T70319 RV-220 Bronze External Thru-Hull Transducer System

Get special pricing! Apply for a business account today.

Apply Now
$1,869.94 $1,869.99
Shipping calculated at checkout.

Shipping Policy

Item ships in 1 to 2 business days. Choose your shipping option during checkout. Read our Shipping Policy and Return Policy.

Features

Description
Designed for inboard or outboard boats, the RV-220 Bronze Through Hull Transducer System lets you easily identify structures and locate fish with the life-like clarity of RealVision 3D™ sonar.The RV-220 system is a 4-channel, Wide Spectrum CHIRP transducer system with DownVision™, SideVision™, high frequency CHIRP fish targeting and RealVision 3D™ sonar inside. The transducer system has a built-in attitude and heading reference system (AHRS) that stabilizes the sonar imagery, automatically compensating for vessel motion. you'll enjoy crystal-clear imagery in waves, swells, and while maneuvering. The RV-220 system also has a built-in fast response water temperature sensor for quick, accurate readings.Raymarine's RV-220 Bronze Through Hull Transducer system pack contains a pair of RealVision 3D transducers with internal offset to accommodate hull deadrise angles from 14° to 26°. This completely eliminates the need for fairing blocks. The low-profile design slips effortlessly through the water without causing drag or cavitation. The near-flush RV-220 system works great on trailered boats too.The RV-220 system features rugged cast-bronze through hull bodies suitable for fiberglass or wooden hulls. One transducer transmits and receives to port and downwards, the other to starboard and downwards, ensuring a full 180° of underwater coverage even on boats with deep keels or other underwater protrusions. Each transducer features a 2-meter pigtail, joining y-cable and 8-meter extension cable, resulting in an overall cable length of 10 meters (33 feet.) RV-220 Includes:
  • RV-220P Bronze Port Transducer with 2M cable
  • RV-220S Bronze Starboard Transducer with 2M cable
  • RealVision 3D Transducer Y-Cable
  • RealVision 3D 8M (26') Transducer Extension Cable
  • Anti-rotation bolt kit
  • Installation instructions
  • Installation instructions

UPC: 723193817049
Model Number: T70319
