Prosource | Our Item #:
MORG6102453
Model Number: 27-1G - UPC : 045734102453

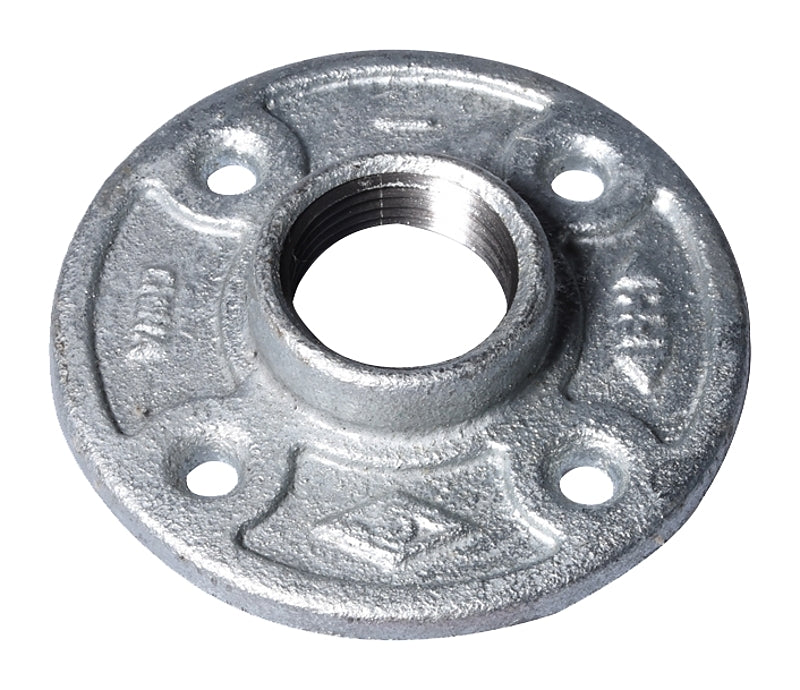

ProSource 27-1G Floor Flange, 1 in, 3.8 in Dia Flange, FIP, 4-Bolt Hole, 0.28 in, 7 mm in (mm) Dia Bolt Hole
Sale price
$5.81
Regular price
$10.05
Unit price
Unavailable
Shipping calculated at checkout.
42% off
ProSource 27-1G Floor Flange, 1 in, 3.8 in Dia Flange, FIP, 4-Bolt Hole, 0.28 in, 7 mm in (mm) Dia Bolt Hole is backordered and will ship as soon as it is back in stock.
Shipping Policy
Shipping Policy
Item ships in 1 to 2 business days. Choose your shipping option during checkout. Read our Shipping Policy and Return Policy.
ProSource 27-1G Floor Flange, 1 in, 3.8 in Dia Flange, FIP, 4-Bolt ...
Sale price
$5.81
Regular price
$10.05
Unit price
Unavailable
Features
- Corrosion-resistant galvanized finish
- UL and FM, NSF372/NSF61 certified
- Meets ASTM and ASME standards
- 150 class malleable steel
- For securing pipe to wall or floor mounts
Description
Description
The galvanized floor flanges are made from malleable iron for tensile strength. Its galvanized finish resists rust in water, air, and steam applications.
Unit: EA
UPC: 045734102453
Model Number: 27-1G
Unit: EA
UPC: 045734102453
Model Number: 27-1G
Additional Information
Additional Information
- Bolt Hole Diameter: 0.28 in 7 mm in (mm)
- Color: Galvanized
- Connection Type: FIP
- Face Type: With Bolt Holes
- Flange Diameter: 3.8 in
- Length through Bore: 0.67 in
- Material: Malleable Iron
- Maximum Pressure: 300 psi
- Nominal Size: 1 in
- Number of Bolt Holes: 4
- Operating Temperature: 5 to 572 (-20 to 300) deg F (deg C)
- Suitable for: For Securing Pipe to Wall or Floor Mounts
