PROSOURCE  |  Our Item #: MORG6102362

Model Number: 27-1/2B - UPC : 045734102361

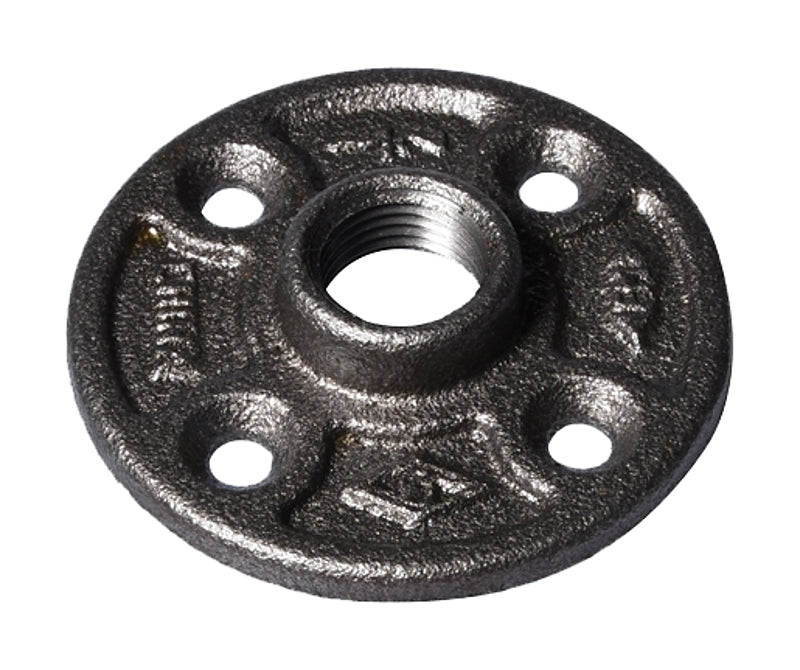

ProSource 27-1/2B Floor Flange, 1/2 in, 3 in Dia Flange, FIP, 4-Bolt Hole, 0.28 inch (7 mm) Dia Bolt Hole

$2.59 $5.89
Shipping calculated at checkout.
56% off

Shipping Policy

Item ships in 1 to 2 business days. Choose your shipping option during checkout. Read our Shipping Policy and Return Policy.

Features

  • The pipe flange has a black finish
  • The pipe flange is UL and FM certified
  • The pipe flange meets ASTM and ASME standards
  • The pipe flange is made of 150 class malleable steel
  • The pipe flange is suitable for securing pipe to wall or floor mounts

Description
ProSource Floor Flange, Nominal Size: 1/2 in, FIP Connection, Flange Diameter: 3 in, Bolt Hole Diameter: 0.28 inch (7 mm), Number of Bolt Holes: 4, Length Through Bore: 0.55 in, Face Type: With Bolt Holes, Maximum Pressure: 300 psi, Operating Temperature: -4~572?(-20~300?)
Unit: EA
UPC: 045734102361
Model Number: 27-1/2B

Additional Information

  • Bolt Hole Diameter: 0.28 inch (7 mm)
  • Connection Type: FIP
  • Face Type: With Bolt Holes
  • Flange Diameter: 3 in
  • Length through Bore: 0.55 in
  • Maximum Pressure: 300 psi
  • Nominal Size: 1/2 in
  • Number of Bolt Holes: 4
  • Operating Temperature: -4572(-20300)
